Shure BLX24/PG58-H10 Wireless Handheld Microphone System with PG58
Key Features
• For Presenters and Performers
• PG58 Cardioid Mic/Transmitter
• Single-Channel Tabletop Receiver
• 123 Auto-Scan Frequencies
• Internal Antenna Diversity
• 14-Hr AA Batteries
• Expandable to 12 Mic Channels/300' Range
The Shure BLX24/PG58 brings performers and presenters a cost-effective wireless handheld microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the compact and lightweight BLX4 single-channel tabletop receiver with internal antennas, ideal for portable use.
The BLX24/PG58 also includes a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.
PG58 Mic Capsule Optimized for Vocals and Speech
The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech.

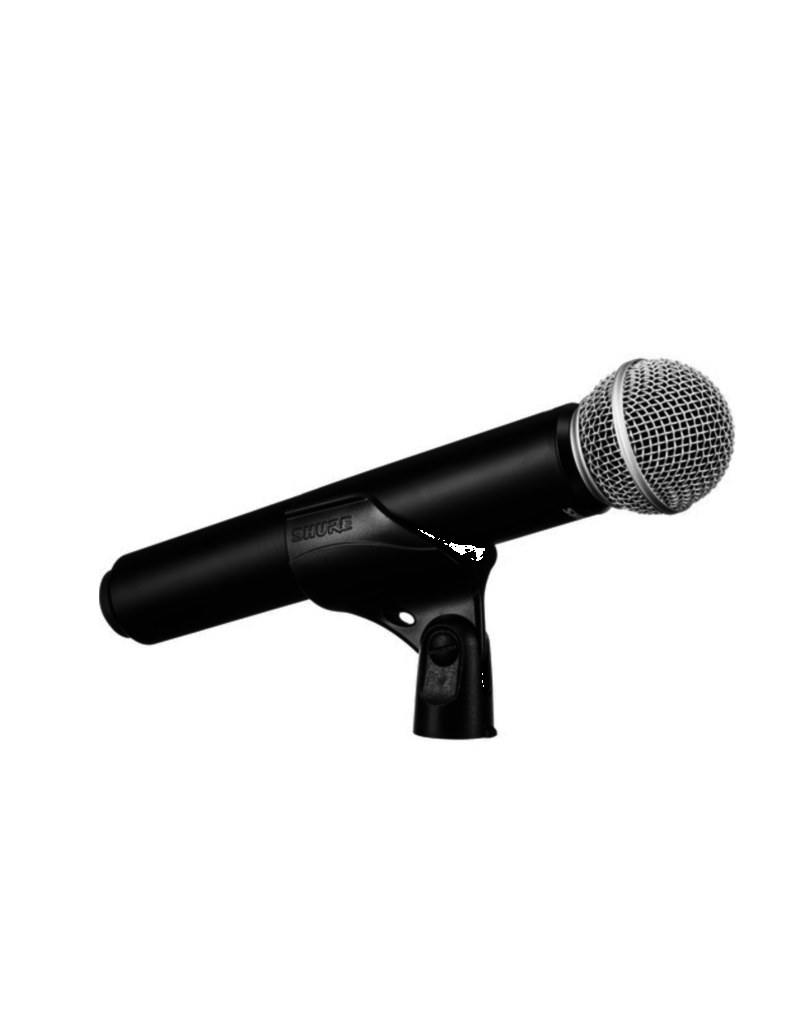

Lightweight Handheld Transmitter
The durable BLX2 handheld transmitter offers a lightweight, ergonomic design, and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

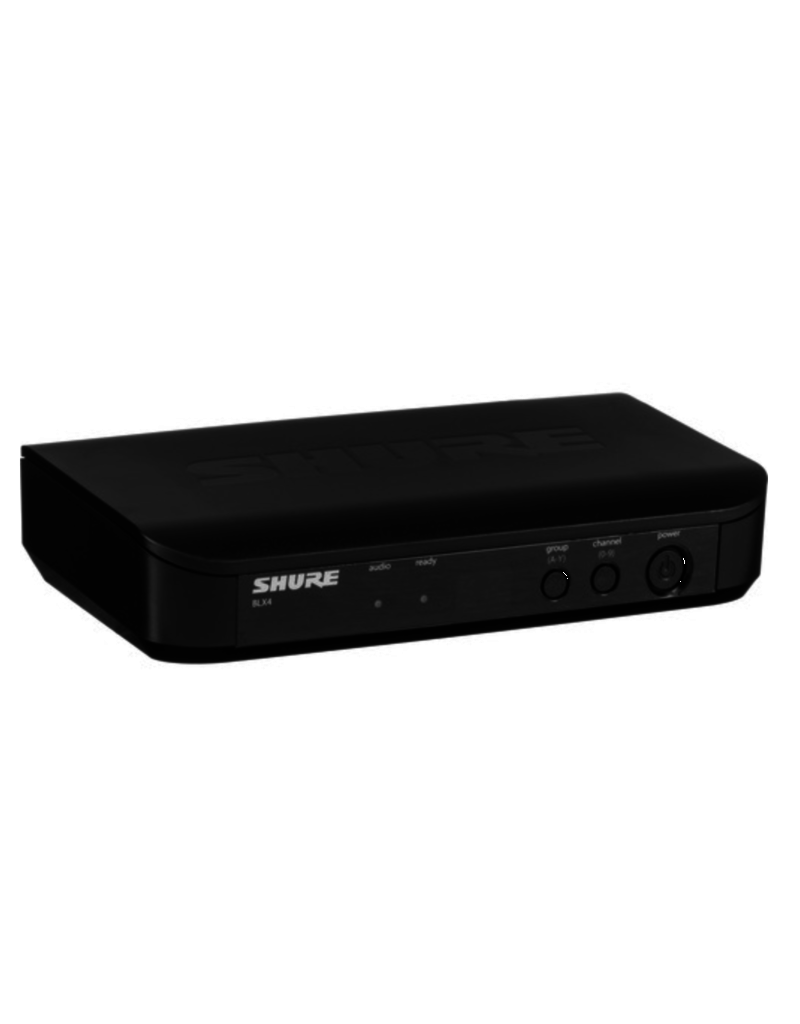

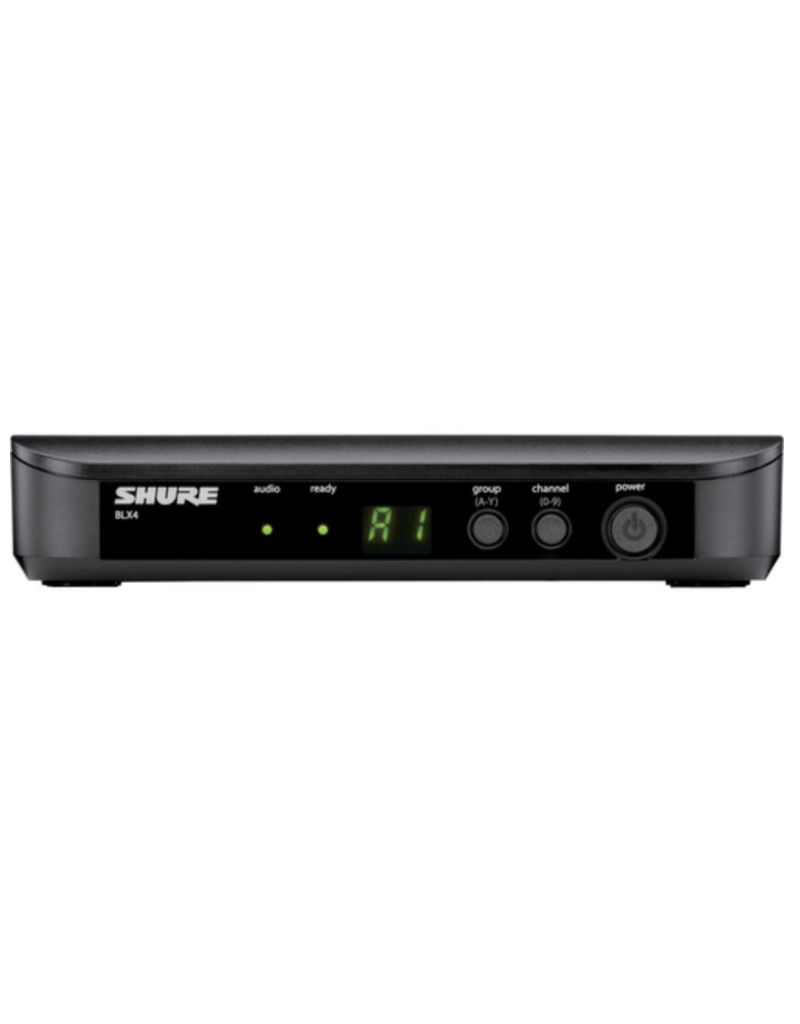

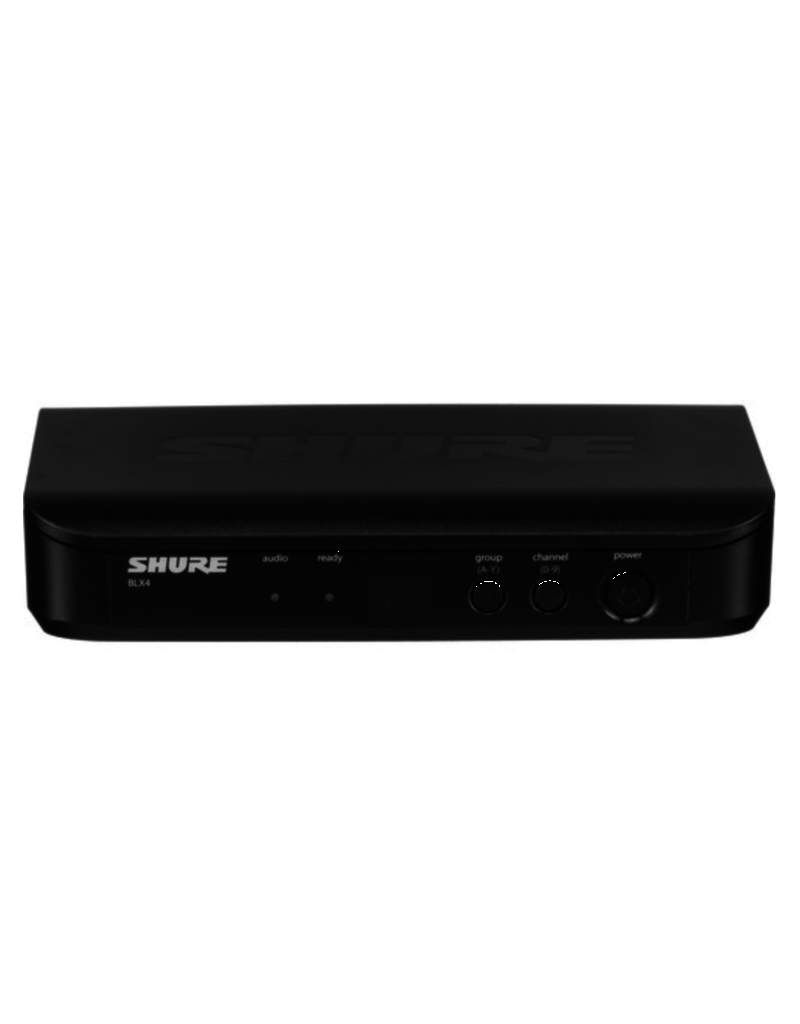

Easy-to-Use Tabletop Receiver for Quality Audio
The BLX4 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.
A Versatile System to Meet Your Needs
Shure offers a BLX1 bodypack transmitter compatible with a variety of lavalier, instrument, and headset microphone options to adapt your BLX system as your needs evolve.
• The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
• The PGA31 is a comfortable, durable headset microphone for active performance.
• Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
• The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
System Specs
Wireless Technology: Analog UHF
Number of RF Channel Frequencies: 123
Included Transmitters: 1 x Handheld
Diversity: Antenna Diversity
RF Frequency Band: H10:542 to 572 MHz
RF Bandwidth: 24 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 300' / 91.4 m (Line of Sight)
Max Transmitters per Band: 12
Dynamic Range: 100 dBA
Receiver Specs
Receiver Type: Tabletop
Antenna: 2 x Internal
Number of Audio Channels: 1

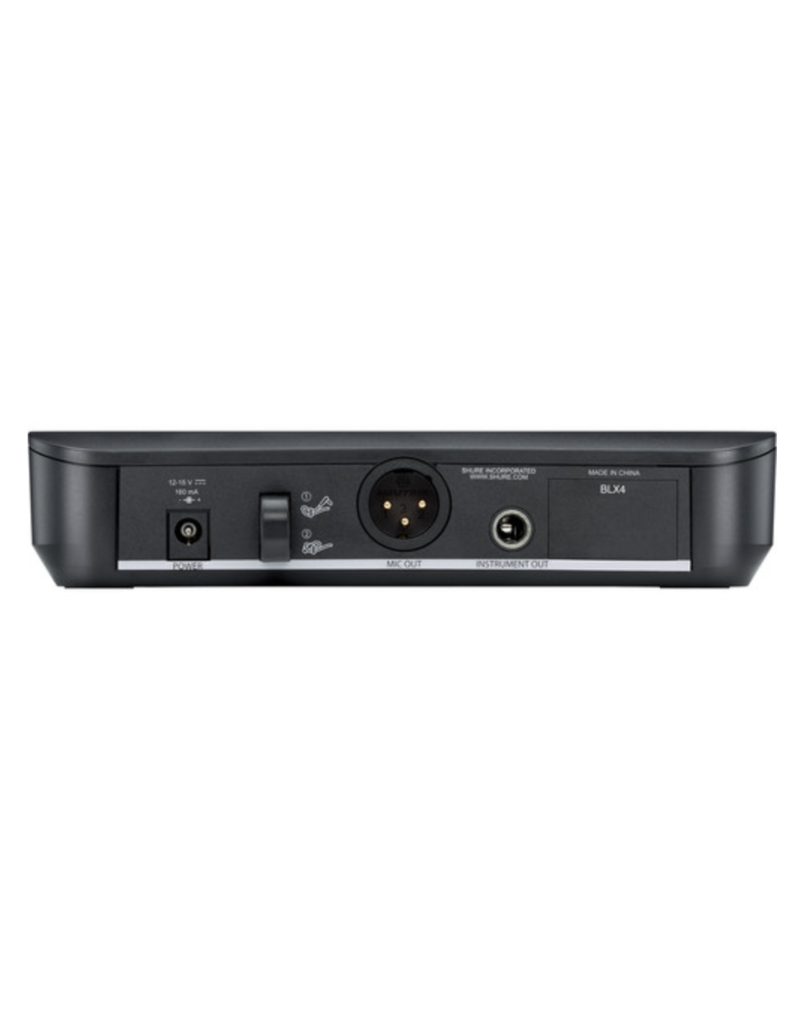

Audio I/O:
1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output Level:
XLR Output:
-27 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
Impedance
XLR Output: 200 Ohms
1/4" Output: 50 Ohms
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x Multi-Segment LED (Channel, Group) 2 x LED (AF Level, Sync)
Housing: ABS
Operating Temperature: 0 to 135°F / -17 to 57°C
Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
Weight: 8.5 oz / 241 g
Transmitter Specs
Transmitter Type: Handheld
RF Output Power: 10 mW
Audio I/O: None
Muting: Off/On Switch
Auto-Level Control: No
Gain Range: -20 to -10 dB
Sync Method: Manual
Antenna: 1 x Internal (Handheld)
Power Requirements: Battery
Battery Type: 2 x AA (Included)
Approx. Battery Life: 14 Hours (Alkaline)
Display & Indicators: 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing: ABS
Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight: 7.7 oz / 218 g (without Batteries)
Microphone Specs
Microphone Type: Handheld Capsule
Sound Field: Mono
Capsule: Dynamic
Polar Pattern: Cardioid
Frequency Range: 50 Hz to 16 kHz
Sensitivity: -55 dBV/Pa at 1 kHz
Packaging Info
Package Weight: 3.08 lb
Box Dimensions (LxWxH): 13.5 x 12 x 3.95"
Included:
Break-resistant microphone clip
