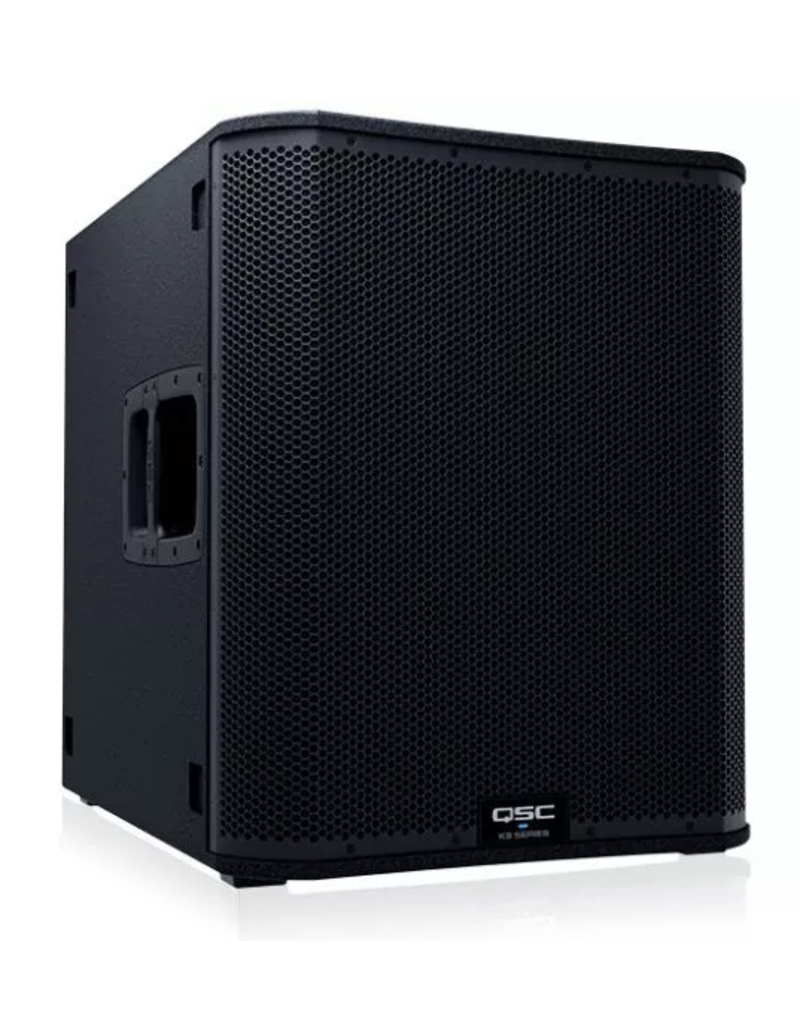

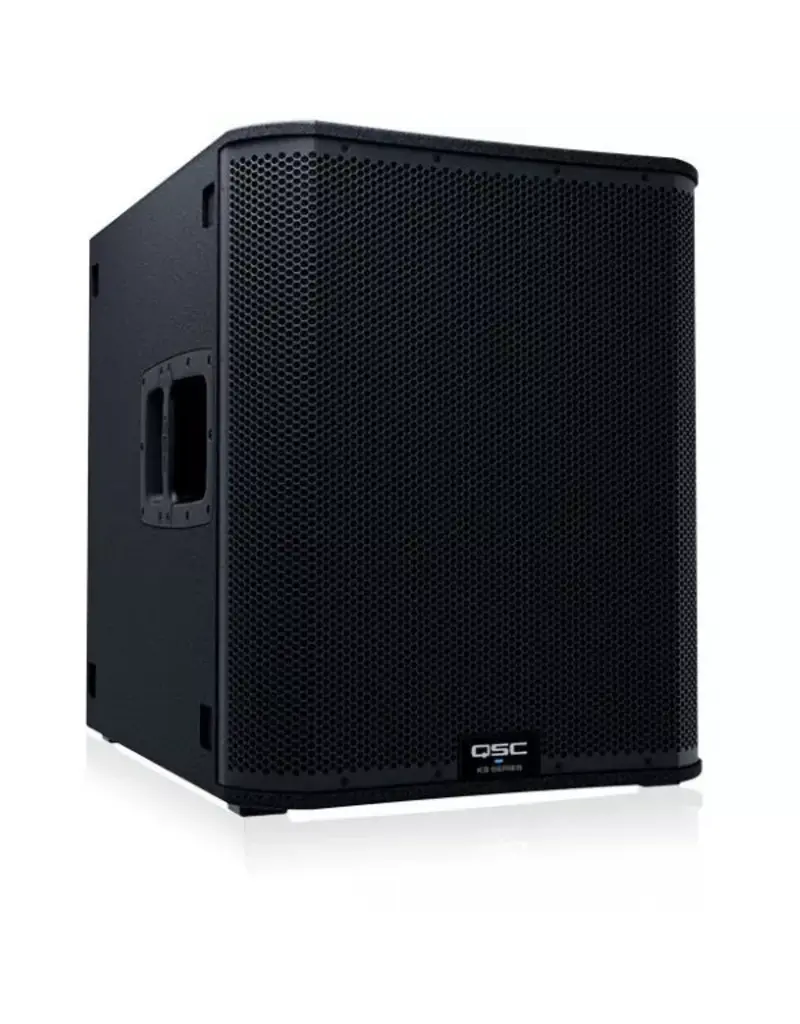

QSC KS118 18" 3600W Active Subwoofer
The QSC KS118 is a high-output active subwoofer well suited for mobile entertainment, AV rental, event production, clubs, and performance venues. The 18" direct radiating driver is powered by a 3600W Class-D amplifier, which delivers high sound pressure levels with dynamic and musical sound reproduction of very-low frequencies.

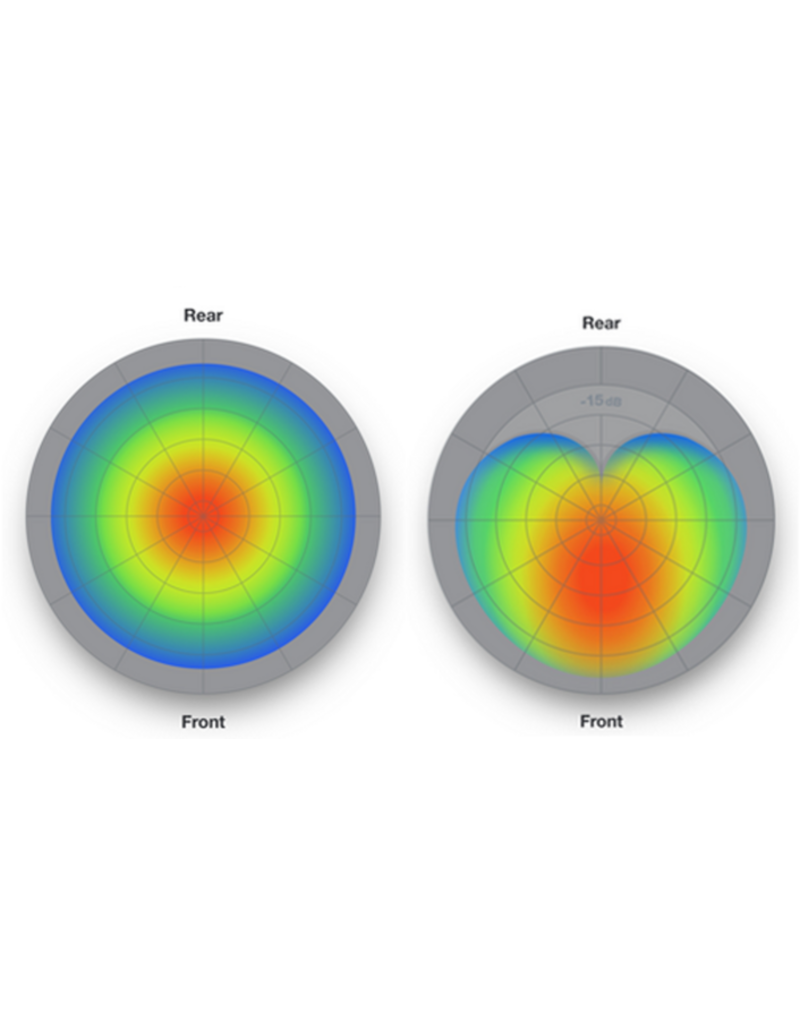

The onboard DSP allows the user to save and recall variable delay and crossover settings, all the while protecting the system. Additionally, two KS118s can be deployed in a cardioid arrangement, which maximizes low-frequency output from the front, while minimizing energy around the sides and rear of the setup.

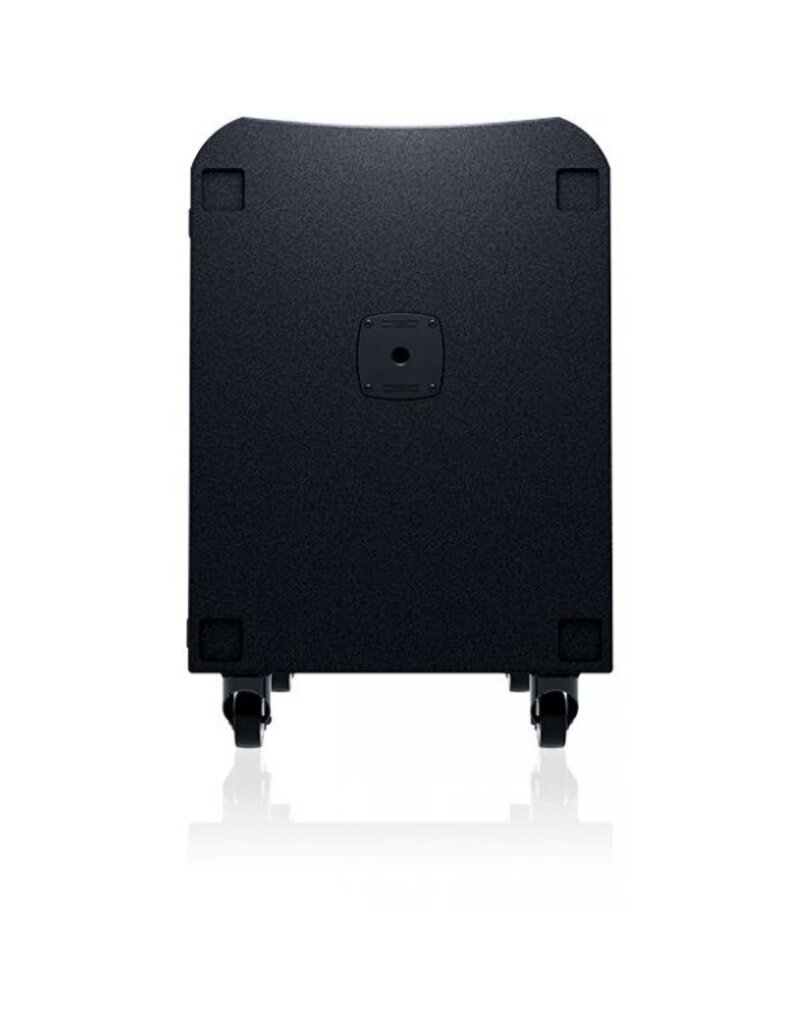

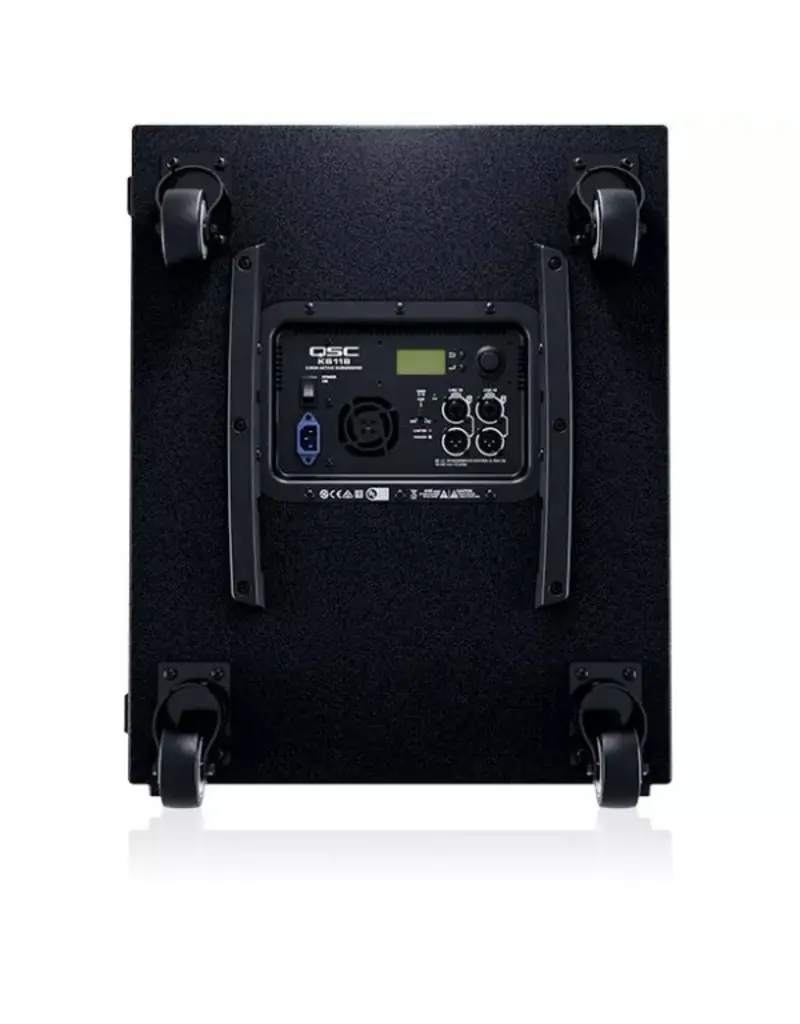

The KS118 is highly portable with four, rear-mounted, low-noise casters. The birch enclosure is rugged yet stylish and features comfortable aluminum handles and a top-mounted M20 threaded pole receptacle accepts a 35mm pole for easy vertical deployment with K.2 Series and other full-range loudspeakers.
SPECIFICATIONS
KS118
Direct Radiating
LF Transducer
460 mm (18 in), Cone
Frequency Response (-6 dB)
41 Hz - 98 Hz
Frequency Range (-10 dB)
35 Hz - 111 Hz
Nominal Coverage Angle
Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Maximum Rated SPL1
136 dB @ 1 m (peak)
Amplifier
Class D
3600W (peak)
Cooling
Low-noise, variable speed fan
Controls
Power On/Off
Gain Control
Rotary encoder
2 × selection buttons
Indicators
2 × Power LED (front and rear)
Input Signal LED
Limiter active LED

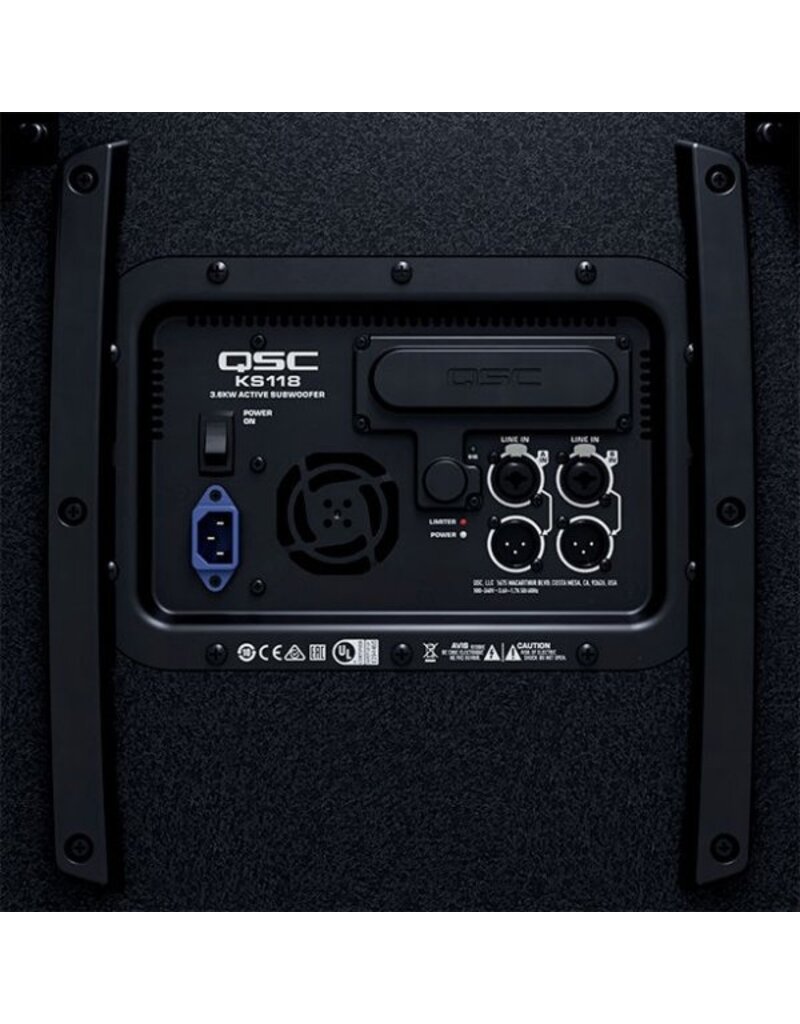

Connectors
2 × locking XLR/F ¼ inch combo
2 × XLR/M (Loop-thru Output)
1 × locking IEC power connector
AC Power Input
Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (⅛ power)
100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A
Enclosure Details
Enclosure
15 mm birch plywood
Color
Black (RAL 9011)
Grille
16-gauge Black Powder Coated Steel
Speaker Dimensions (H×W×D)
640 × 520 × 785 mm
25.2 × 20.5 × 30.9 in
Carton Dimensions (H×W×D)
572 × 743 × 896 mm
22.5 × 29.3 × 35.3 in
Net Weight
47 kg / 104 lb (including casters)
Shipping Weight
56.5 kg / 124.6 lb
Regulatory
CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories
4 × Low-Noise, Heavy Duty Casters
Optional Accessories
KS118 CVR Transport Cover, KS-LOC Lock-Out Cover
SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
1 Peak SPL is measured on-axis, at 1 meter, using Pink Noise, Crest factor 10 dB unweighted.
With product registration. Visit QSC.com for full details
All specifications are subject to change without notice.
