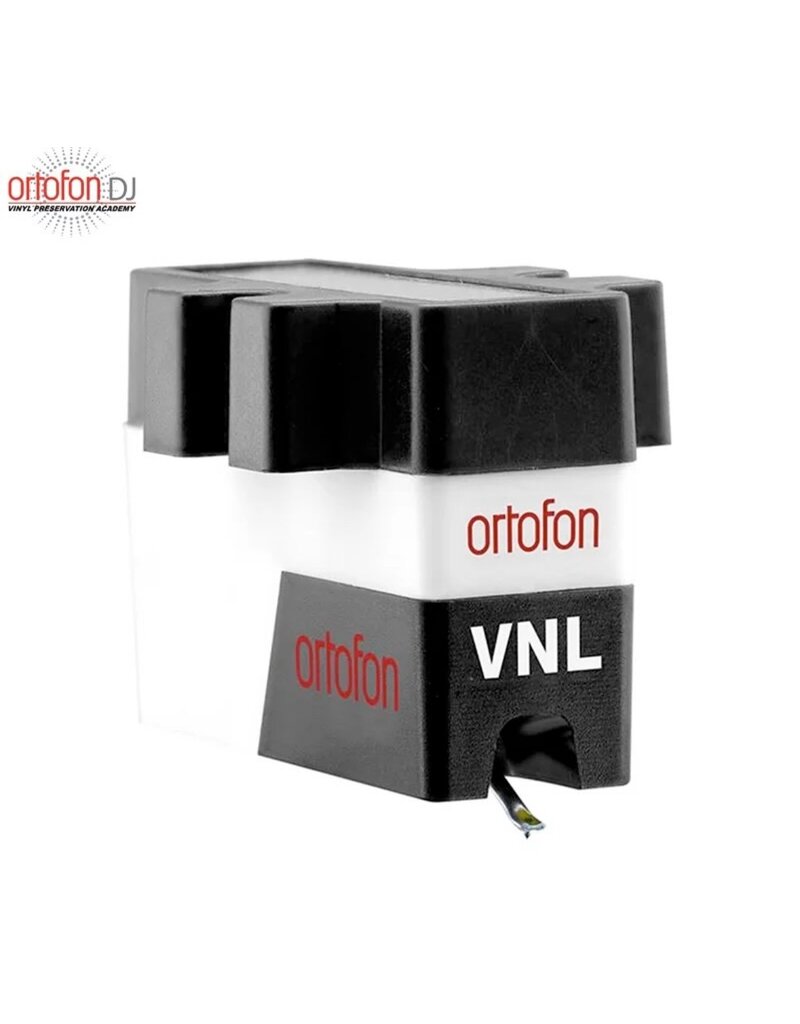

Ortofon VNL Intro Pack Includes 3 Styli

$149.99
VNLPACK
85
Ortofon_VNL_Pack
In stock
+ -

Product description

In ViNyL we trust

Skilled DJs demand specialized tools that can help them push their creativity to the edge – consistently testing the boundaries in the realm of performance.

Understanding this and reflecting Ortofon's extensive experience in industrial design and technological know-how, Ortofon present the new VNL cartridge – a model tailored uniquely to the unrelenting demands of modern turntablists and portablists.

The new VNL features and improvements

  • Extra resistance to hardcore scratching and back spinning
  • High tracking performance for both DVS usage and real vinyl
  • Optimal balance of output and of sound quality

Technological improvements have been applied for the benefits of all users:
- Ultrasonic welding of the components ensures high rigidity and freedom from resonances.
- Robotic assembly of stylus assembly offers high precision and uniformity of industrial production.

3 different feels to fine-tune your performance

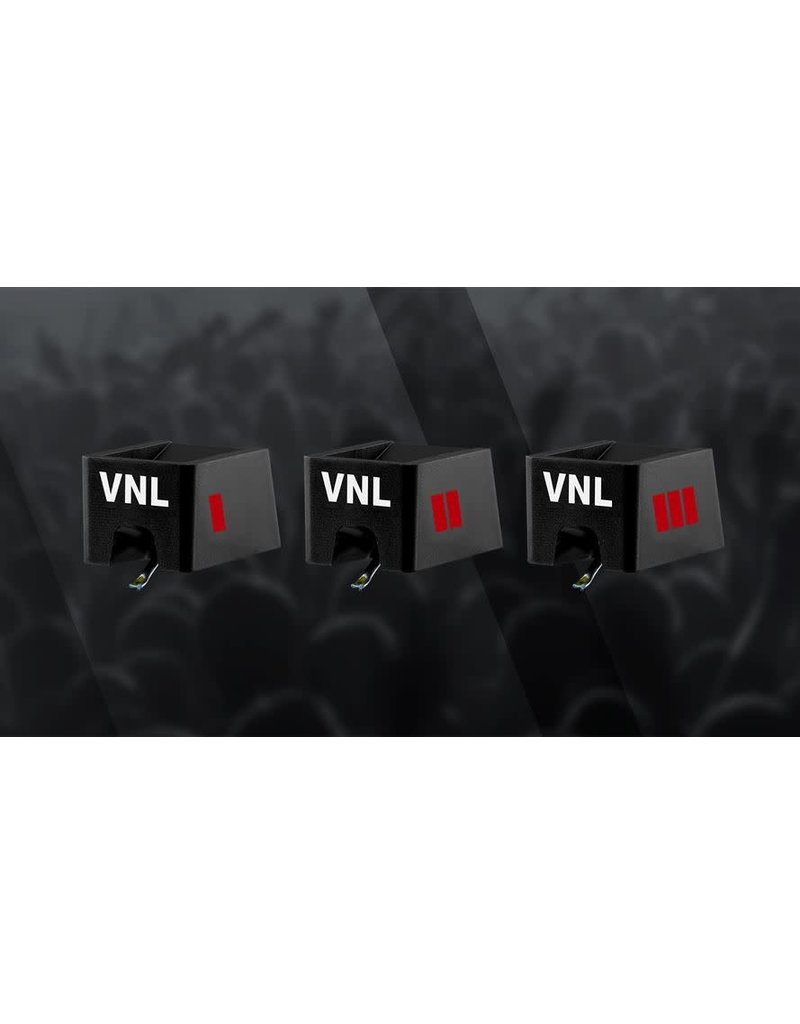

To match the multiple applications of modern DJs the VNL Introduction package includes 3 different styli with suspension types of varying feel and rigidity:

VNL I compliance, dynamic lateral 16 μm/m N - Flexible
VNL II compliance, dynamic lateral 15 μm/m N - Rigid
VNL III compliance, dynamic lateral 14 μm/m N - Firm

DJs can easily identify which stylus type best suits their individual DJ style and enables their absolute best performance capability!

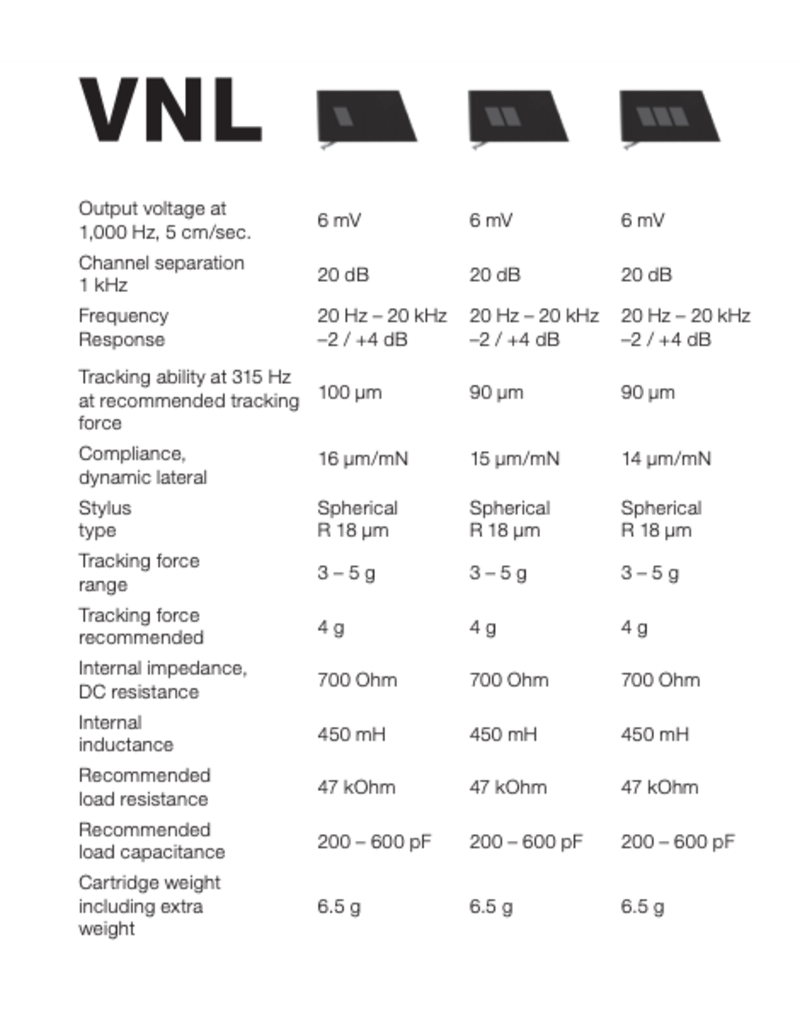

Stylus Type Spherical
Tracking Force 4.0 g
Output Voltage 6 mV
Frequency Range 20-20.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel separation at 1kHz - 20 dB
Frequency response 20 Hz - 20 kHz  -2/+4 dB
Tracking ability at 315 Hz at recommended tracking force:

VNL I 100 μm
VNL II 90 μm
VNL III 90 μm
Compliance, dynamic lateral:

VNL I 16 μm/m N
VNL II 15 μm/m N
VNL III 14 μm/m N

Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge weight - 6,5 g
Replacement stylus units: VNL I,  VNL II,  VNL III
Antiskating: for best backcueing performance use “0”

*Ortofon Headshell is not included with this package.
