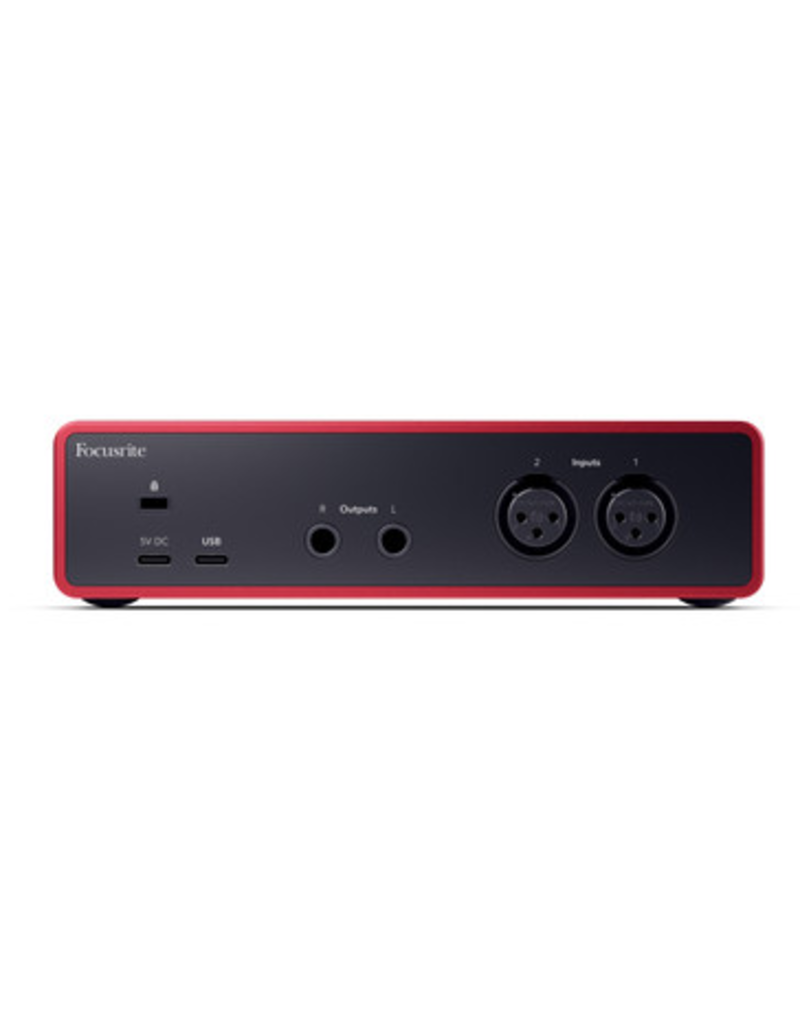

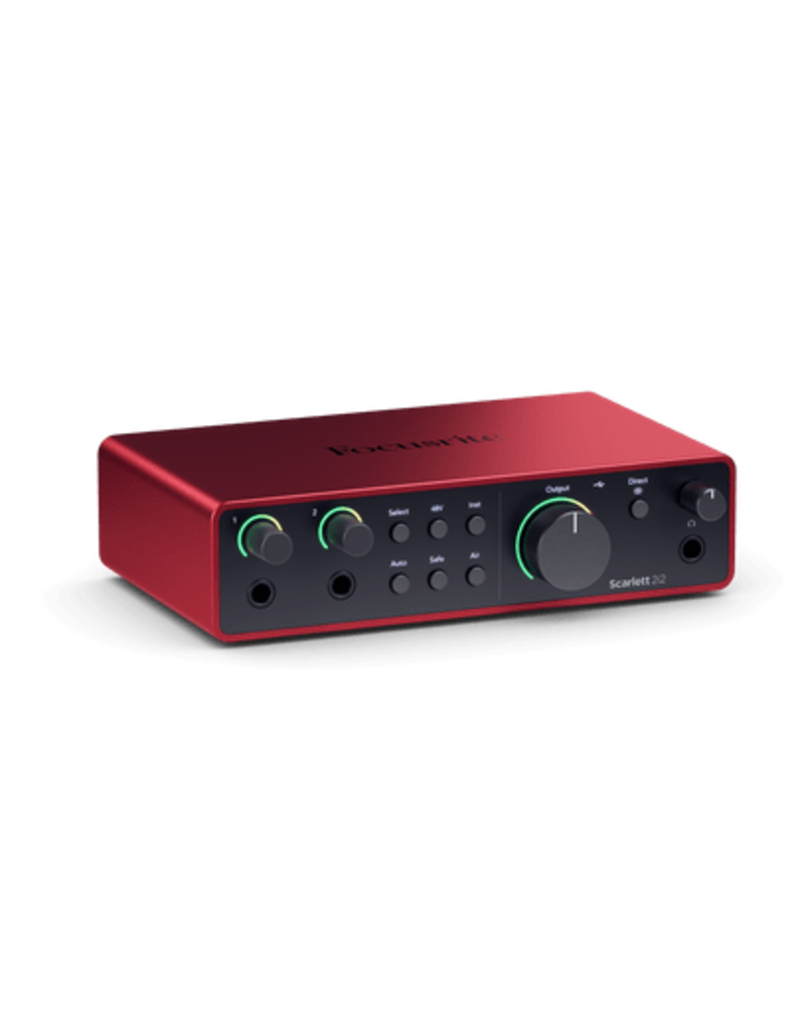

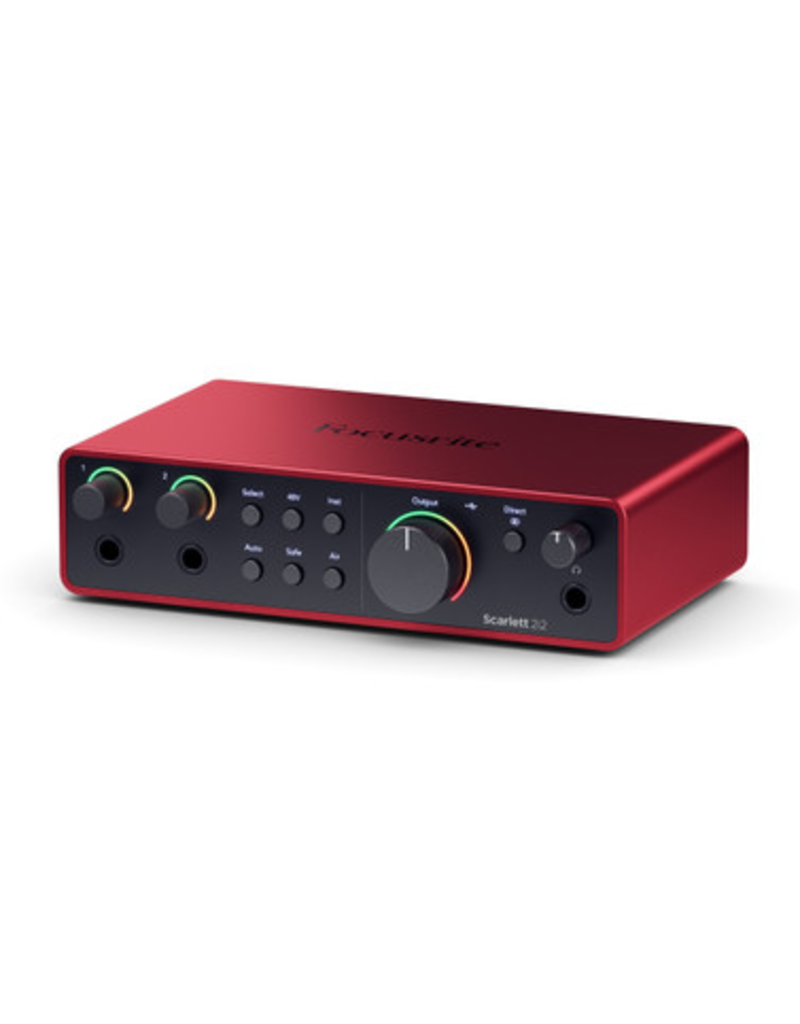

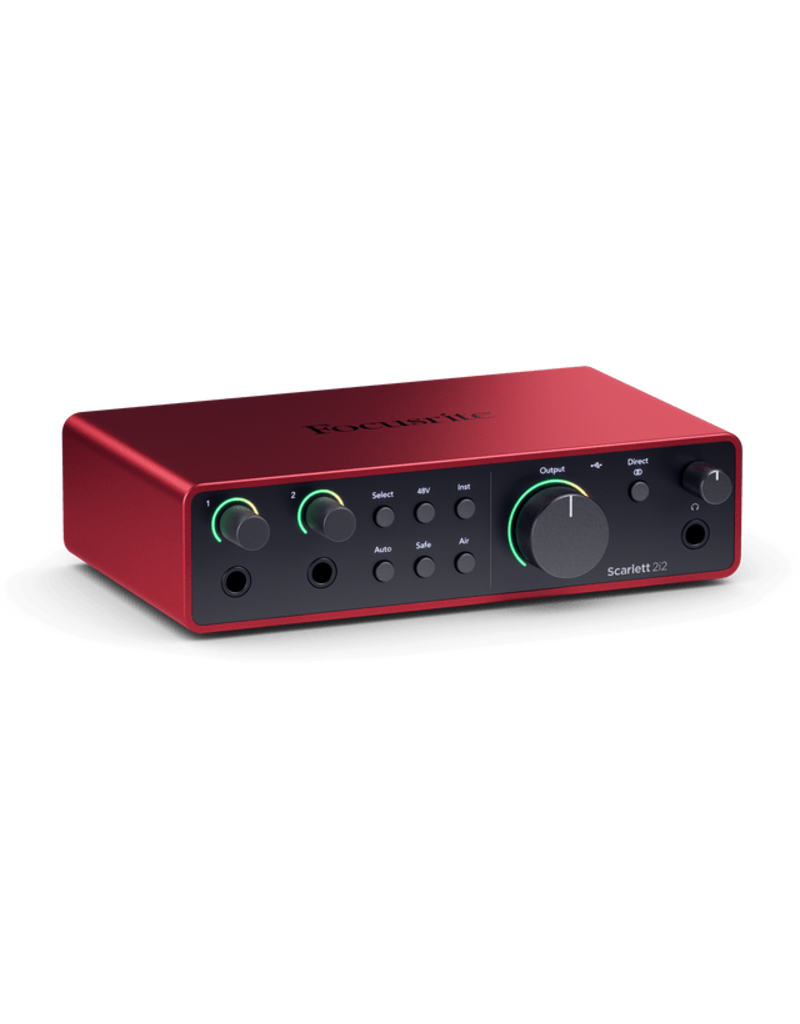

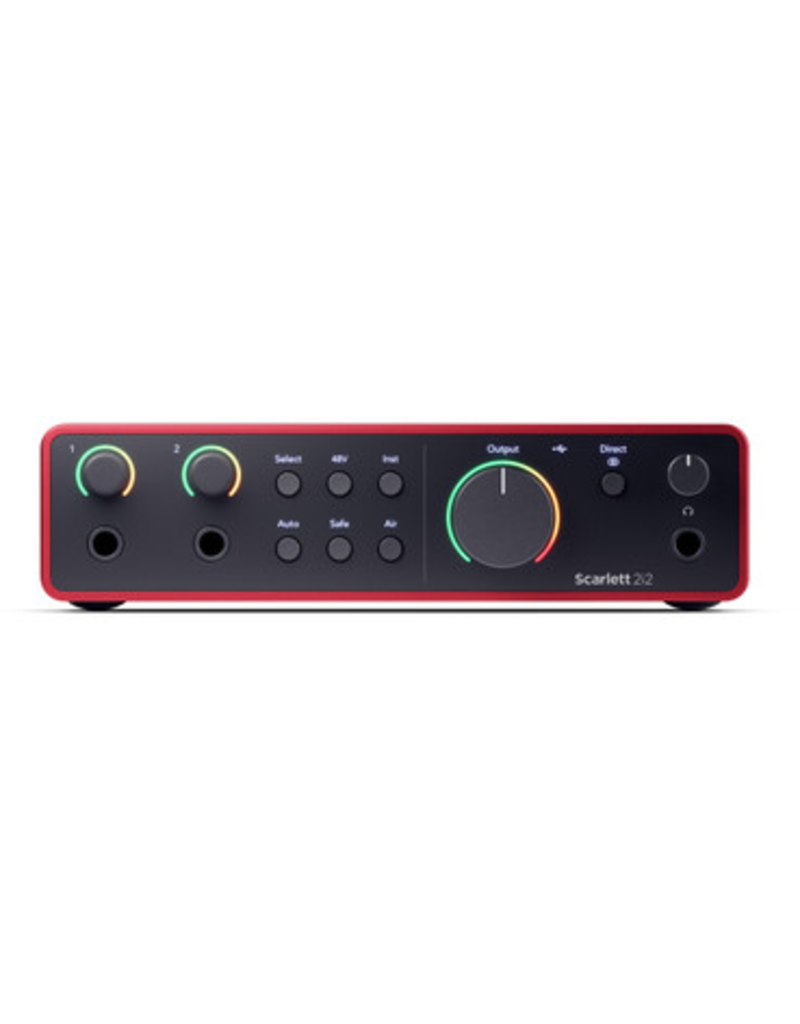

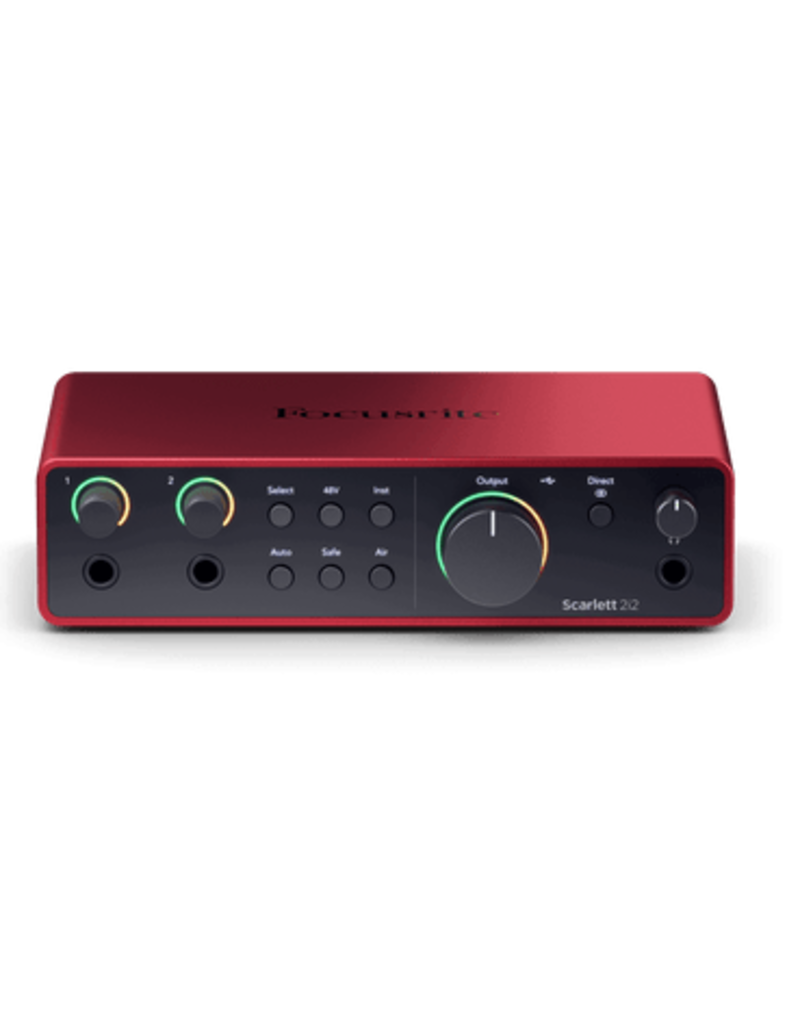

Focusrite Scarlett 2i2 USB Audio Interface (4th Gen)
The original studio-quality 2-in, 2-out interface, has been remastered for the artist. Two of our most detailed ultra-low-noise mic pres. Hi-Z and super-high-quality line inputs for guitars, keys and synths. Studio-grade converters, with a huge 120dB dynamic range that matches what you'd find in a pro studio.
Auto Gain and Clip Safe make sure you'll never need to worry about your levels. Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.
Plug into 2i2’s 4th-Generation remote-controlled preamps — Scarlett’s clearest and most detailed ever, with a huge 69dB gain range to get the best from every mic.
Auto Gain sets your levels and Clip Safe keeps them in the sweet spot, automatically tweaking the gain if you’re in danger of clipping. You'll never lose a take again.
Hi-Z instrument inputs, just like you’d find on an amp, make guitars sound great for DI’s and amp sims.
Two super-high-quality line inputs capture all the character of your synths and keys.
Presence mode boosts your signal’s high-end, bringing the sound to the front of the mix. Create intimate vocal recordings, capture every detail of acoustic guitars, and hear your drum overheads shimmer.
Harmonic Drive mode boosts mid-range harmonics in your sound, making its unique character shine through the mix. Try it on guitars, vocals, or anything else that needs a little more punch.
Overview
- Number of Microphone Preamps: 2
- Phantom Power: Yes
- Instrument Inputs: 2
- Line Inputs: 2
- Air Mode: Yes
- Auto Gain: Yes
- Clip Safe: Yes
- Line Outputs: 2
- Headphone Outputs: 1
- Loopback: Yes
- Connectivity: USB Type-C
- Protocol: USB 2.0
- Form Factor: Desktop
- Simultaneous I/O4 x 2 (including Loopback inputs)
- A/D Resolution: 24-bit/192 kHz
- Bus Powered: Yes (900mA)
Dimensions
- Height: 47.5mm
- Width: 180mm
- Depth: 117mm
- Weight: 0.595kg
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
- Frequency Response: 20-20kHz ± 0.06dB
- Dynamic Range: 116dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Noise EIN-127dBu (A-Weighted)
- Maximum Input Level: 16dBu
- Gain Range: 69dB
- Impedance: 3kΩ
Line inputs
- Frequency Response 20-20kHz ± 0.05dB
- Dynamic Range 115.5dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Maximum Input Level 22dBu
- Gain Range 69dB
- Impedance: 6 0kΩ
Instrument inputs
- Frequency Response: 20-20kHz ± 0.15dB
- Dynamic Range: 113dB (A-Weighted)
- THD+N-80dB @ minimum gain
- Maximum Input Level: 12dBu
- Gain Range: 62dB
- Impedance: 1MΩ
Line outputs (Balanced)
- Frequency Response: 20-20kHz ± 0.02dB
- Dynamic Range: 120dB
- THD+N: -109dB
- Maximum Output Level: 16dBu
- Impedance: 100Ω
Headphone outputs
- Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
- Dynamic Range: 112dB @ 33Ω
115dB @ 300Ω
- THD+N: -99dB @ 33Ω
-108dB @ 300Ω
- Maximum Output Level: 2.5dBu into 33Ω
10dBu into 300Ω
- Maximum Output Power: 32mW into 33Ω
22mW into 300Ω
- Impedance: 50Ω
Analogue to Digital Converter
- THD+N: -110dB
- Dynamic Range: 120dB
Digital to Analogue Converter
- THD+N: -115dB
- Dynamic Range: 130dB (A-Weighted)
Power
- USB900mA
- External (Optional)4.5W
