Pioneer DJ DDJ-FLX10: 4-channel Performance DJ Controller
Split. Mix. Create: Introducing the DDJ-FLX10

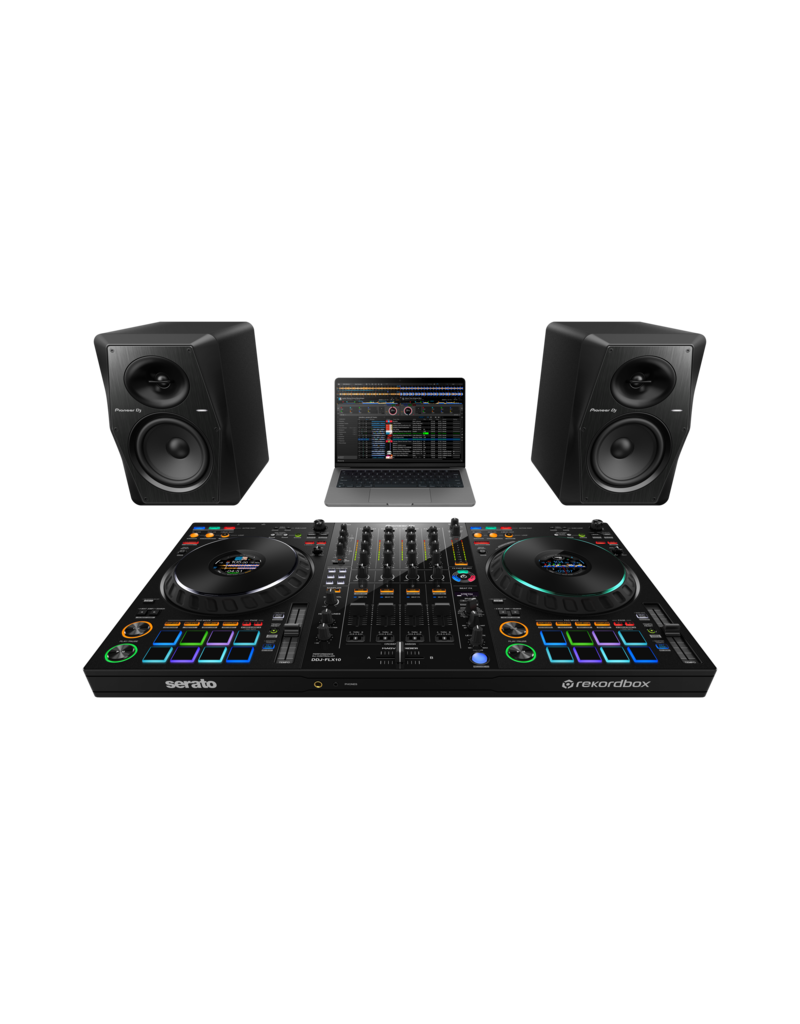

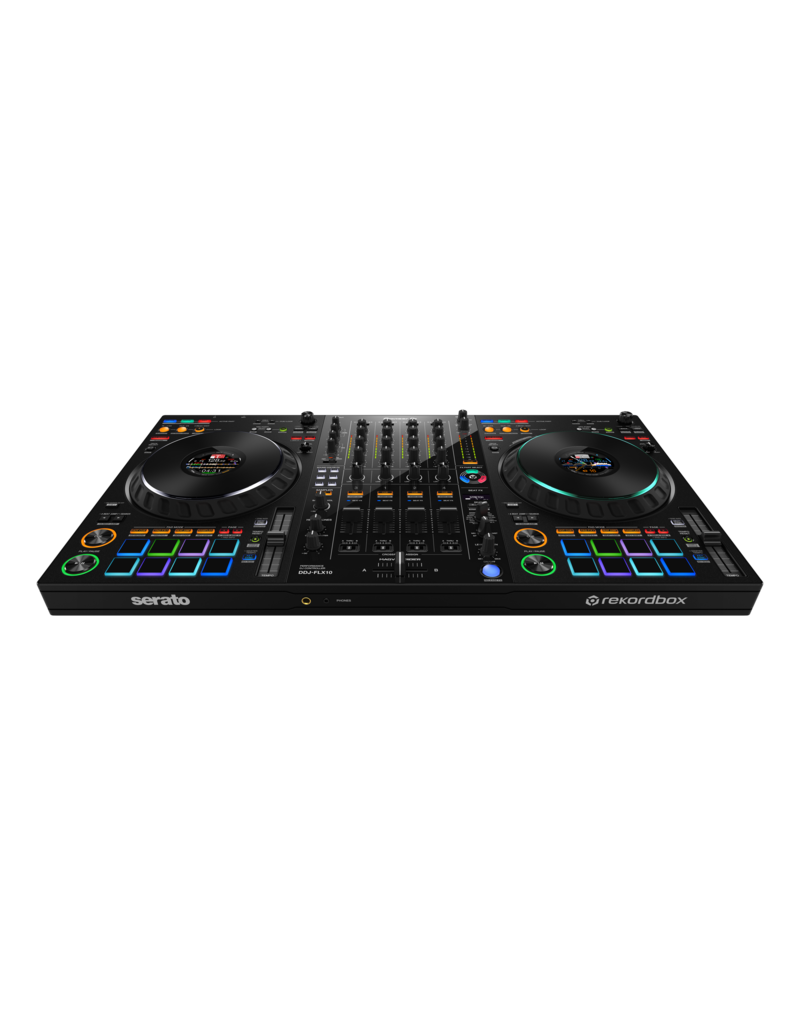

The DDJ-FLX10 is a 4-channel performance DJ controller for rekordbox and Serato DJ Pro. It includes a host of brand-new features including Track Separation technology, which enables new creative possibilities such as the easy performance of mash-ups on the fly with no need to prepare tracks in advance.
Load the regular songs from your music library and create remixes and mash-ups on the fly by independently manipulating the 3 key parts of the music: vocals, drums, and inst (other instruments including bass and synths). There are dedicated color-coded buttons to control each part, so you’ll always have a clear visual grasp of what’s playing.

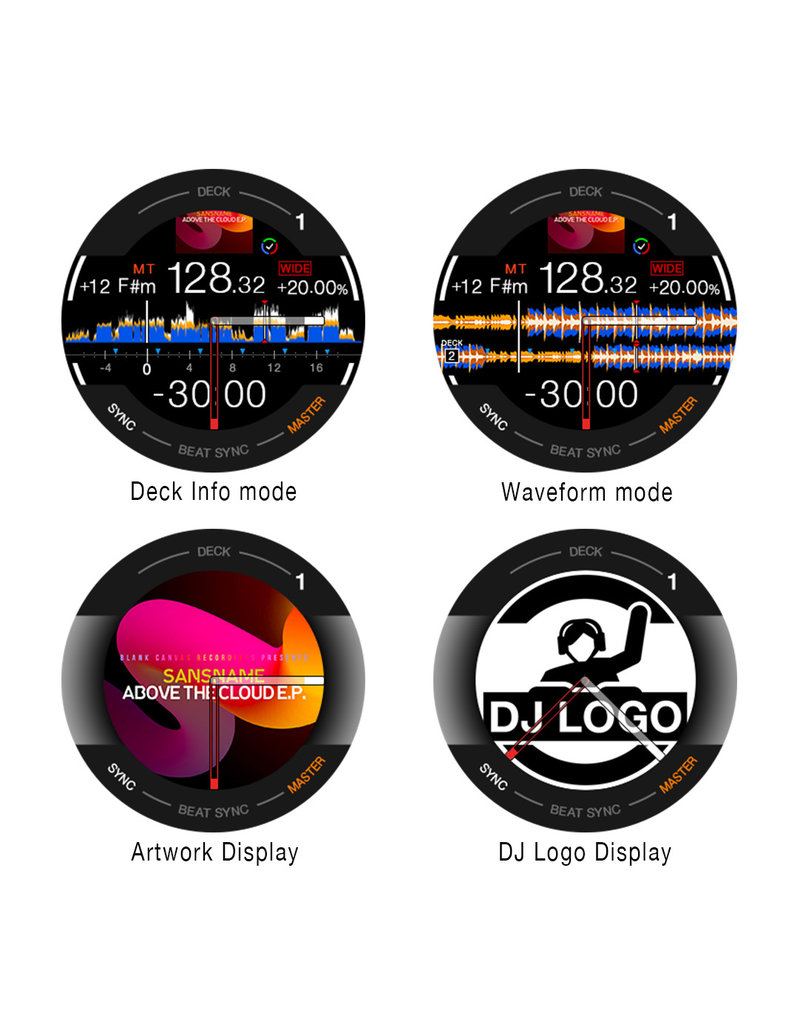

Customize the information you see on the jogs so there’s no need to take your eyes off the decks. Choose from 4 modes, some of which show 3 Band Waveforms (rekordbox only), and keep an eye on Mix Point Link and rekordbox vocal position analysis information, as well as Performance Pad status.
Take advantage of a completely new playback concept in rekordbox that enables you to create slick musical progression in your sets by linking mix points in tracks so the next song kicks in at the perfect moment. You might set the next track to start from the beginning of its melody when the vocal of the current song ends, ensuring a seamless transition without a sound clash. There’s no need to count down or press play manually, which also leaves your hands free to create mash-ups or add effects.

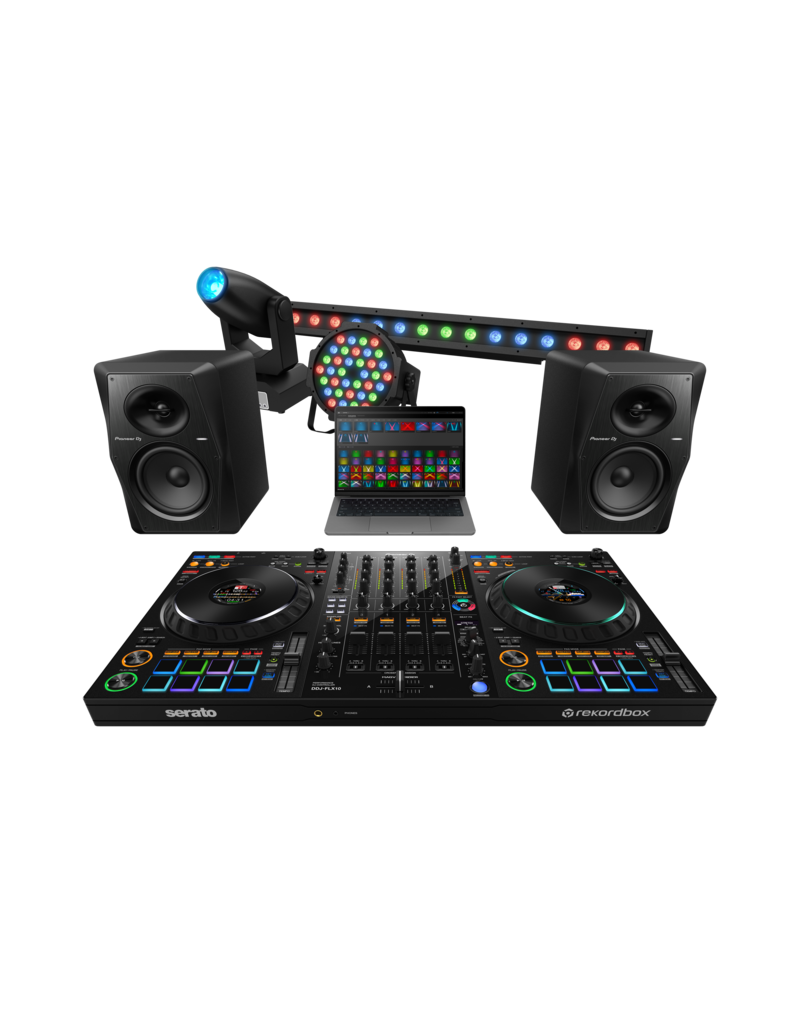

Liven up your performances with lighting effects that match the mood of the tracks you play. It’s easy with the rekordbox Lighting function and, thanks to the DMX output on the DDJ-FLX10, you don’t need any other equipment such as an external DMX interface. Simply connect DMX-compatible lighting equipment to the controller and use rekordbox to create custom lighting effects, or set the software to automatically adapt the color and movement of the lights to progress with the music.

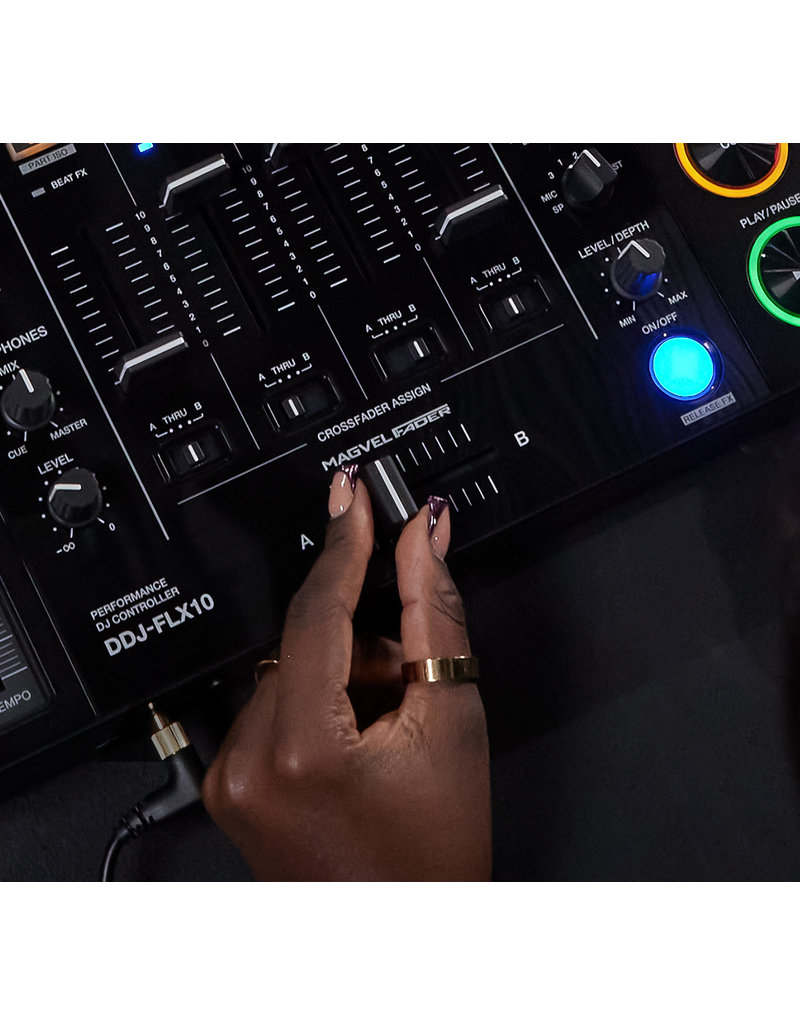

Improved from the 2-sensor system on the DDJ-1000, the MAGVEL FADER on the DDJ-FLX10 uses a 4-sensor system. This allows you to make the tiniest volume adjustments, no matter how small the movement of the crossfader, enabling more musical performances.
The DDJ-FLX10 offers free plug-and-play compatibility with rekordbox and Serato DJ Pro, giving you hands-on control of your favorite software application. DVS support is available for rekordbox via selected subscription plans, and for Serato via a paid license/subscription to Serato DJ Expansions or Serato DJ Suite.
You can use the first-ever multicolored jog ring on a Pioneer DJ controller to indicate the different parts of the track that are playing when you’re using the Track Separation features, or you can customize the colors to your preferred look.
OTHER FEATURES
Connect your PC/Mac directly to the controller’s USB Type-C terminal with a single cable.
A voucher for the Serato Pitch ‘n Time DJ Expansion Pack is included, which enables key shifting and key syncing with perfect audio quality.
Hit the 8 back-lit rubber Performance Pads to trigger Hot Cues, Pad FX, Beat Jump, and the sampler.
You’ll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.
Main Features
Compatible DJ Software
rekordbox
Serato DJ Pro
DVS Control
rekordbox (Core plan or above)
Serato DVS (Paid upgrade)
Software System Requirements
Visit serato.com for its specifications.
Visit rekordbox.com for its specifications.
What's in the box
Power cord
AC adaptor
USB Type-C cable
Serato voucher(Pitch 'n Time DJ)
Quick Start Guide
Precautions for use
Warranty (selected regions only)
Specifications
Frequency Range: 20 - 20000 Hz
Width: 28.19 in
Height: 2.89 in
Depth: 15.76 in
Weight: 14.77 lb
Soundcard: 24 bit/44.1 kHz
Signal-to-Noise Ratio: 110 dB
Distortion < 0.002 % (USB)
Power Consumption: DC 12 V, 3 000 mA
Performance Control
Channels: 4
Deck Control: 4
Trim knob: Yes
Jog Wheel: 170 mm
Color on jog display: Yes
Feeling Adjust: Yes
Beat FX
LOW CUT ECHO
Echo
Multi Tap Delay
Spiral
Reverb
Trans
ENIGMA JET
Flanger
Phaser
Stretch
Slip Roll
Roll
MOBIUS (SAW)
MOBIUS (TRIANGLE)
Beat FX: Yes
Sound color FX: Yes
Sound Color FX
Space
Dub Echo
Crush
Pitch
Noise
Filter
Sampler: 16slot x 4bank
Hot Cues: 16
Pad Modes rekordbox
Hot Cue
Pad FX 1
Beat Jump
Sampler
Keyboard
Pad FX 2
Beat Loop
Key Shift
Pad modes Serato
Hot Cue
Pad FX
Beat Jump
Sampler
Pitch Play
Roll
Auto Loop
Key Shift
Manual Loop: Yes
Beat Jump: Yes
Slip Mode: Yes
Talkover Function:Yes
EQ Isolator: Yes
Key Sync: Yes

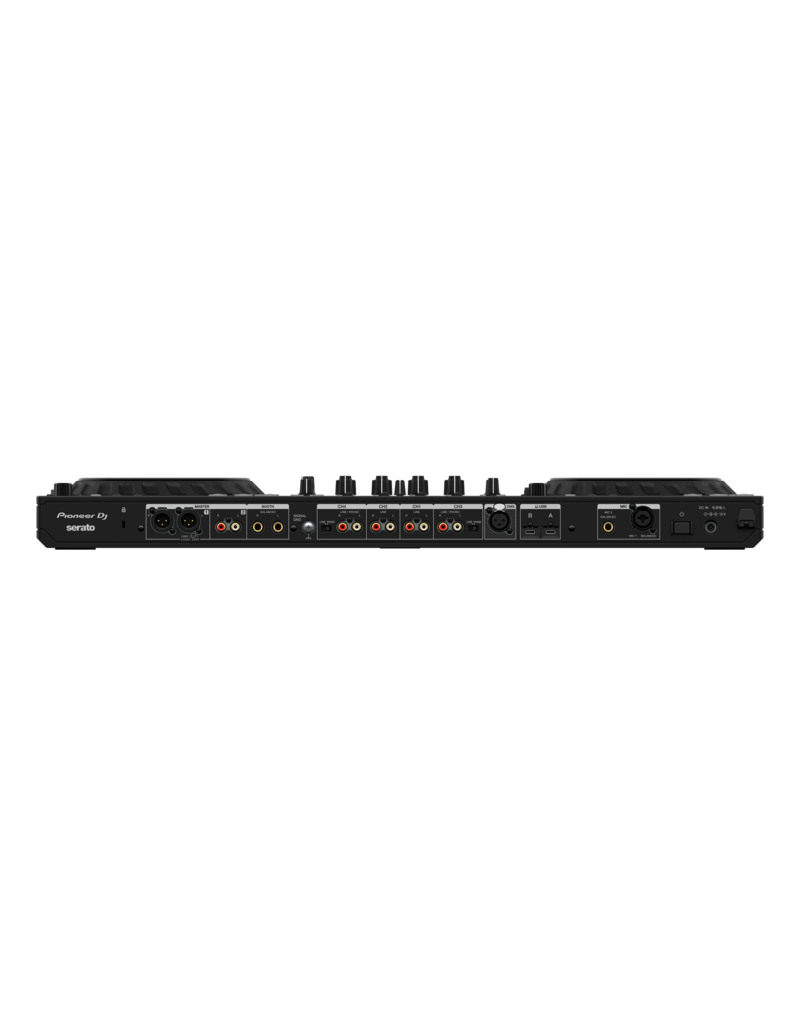

Terminals
Inputs
2 LINE (RCA)
2 PHONO/LINE (RCA)
1 MIC (XLR & 1/4 inch TRS Jack)
1 MIC (1/4 inch TRS Jack)
Outputs
1 MASTER (XLR)
1 MASTER (RCA)
1 BOOTH (1/4 inch TRS Jack)
1 PHONES (1/4 inch stereo phone Jack)
3.5 mm stereo mini jack x 1
USB
2 USB C ports
