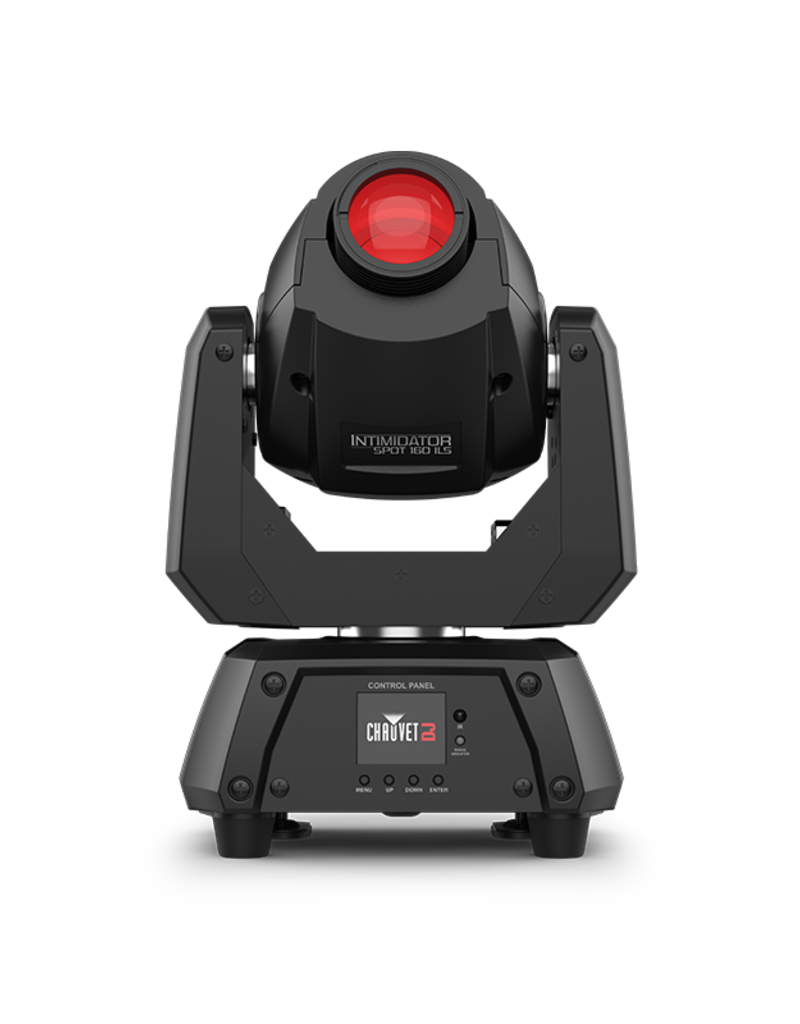

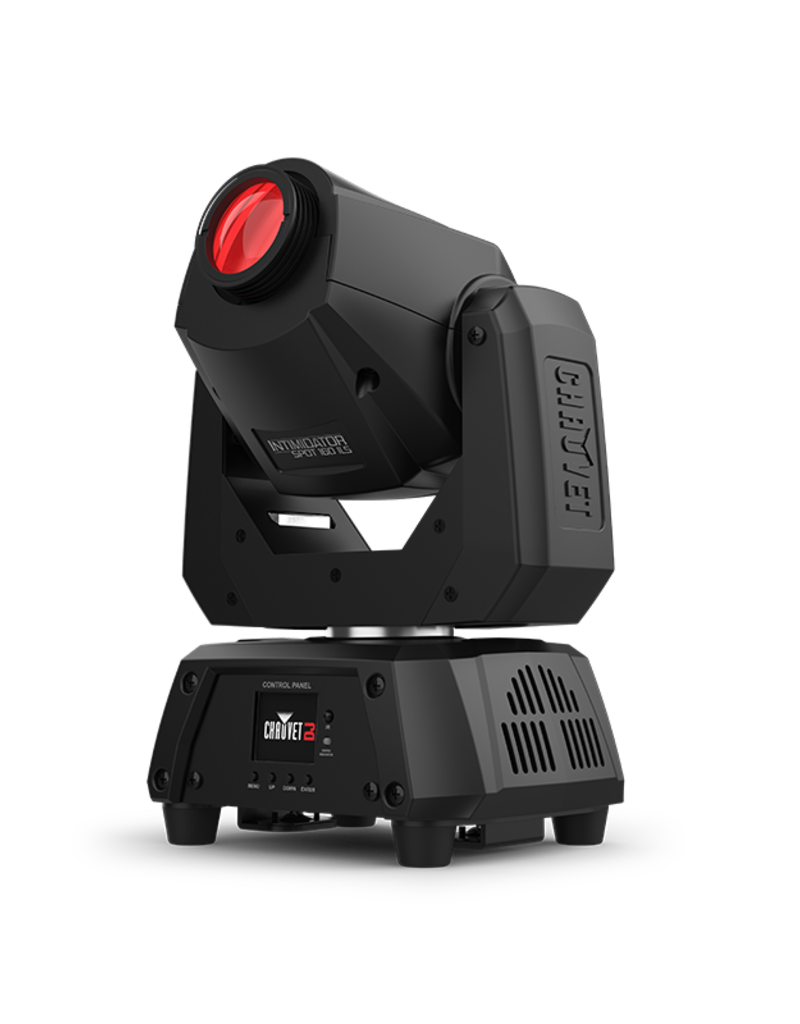

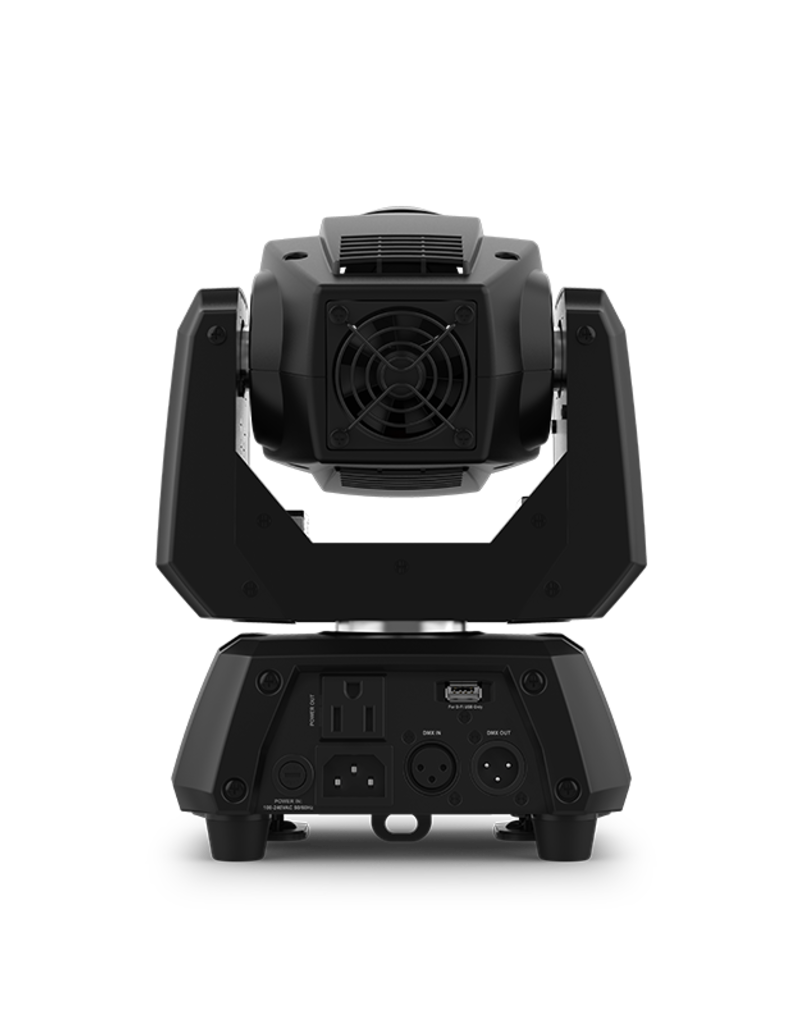

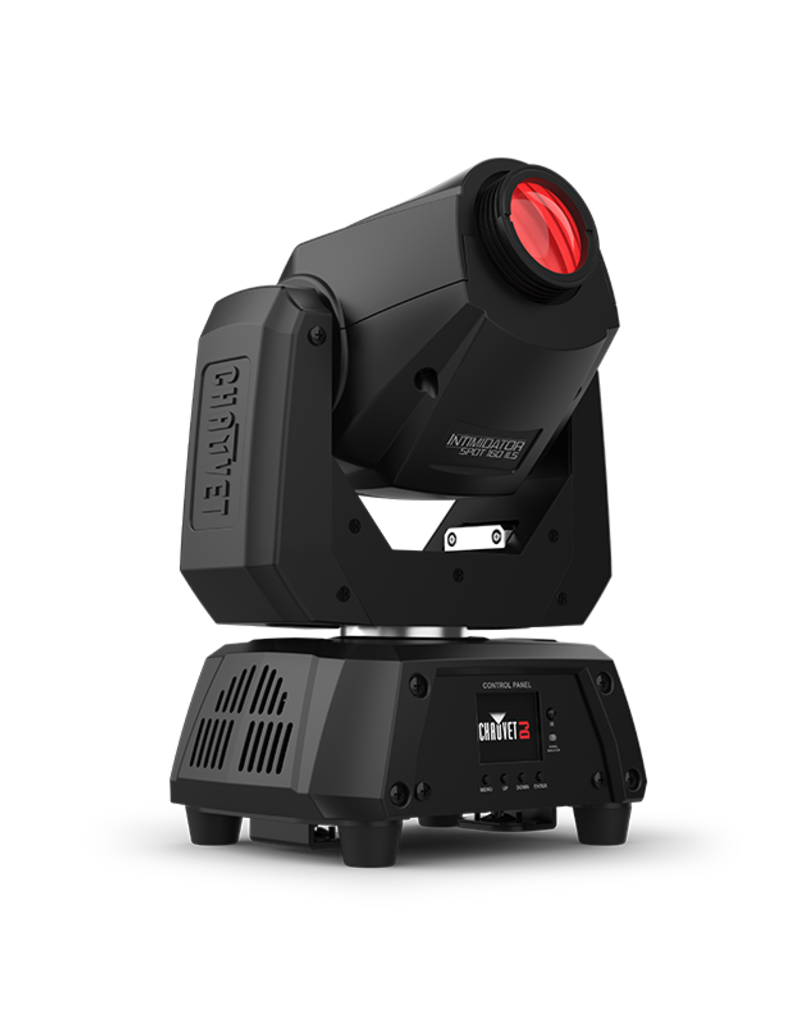

Feature-packed moving head designed for mobile performances
-
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
-
¼-turn hanging bracket allows for quick removal when needed
-
Beams always remain on the dance floor using the built-in, innovative Totem mode
-
Set, save, and recall 1 scene manually, directly from the full-color LCD display
-
Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
-
Convenient, wireless non-DMX control using the optional IRC-6 remote
-
Fits best in the CHS-1XX VIP Gear Bag
Specifications
- DMX Channels: 5 or 11
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/229°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 229° tilt
- Colors: 9 + open, split colors, continuous scroll at variable speeds
- Gobos: 9 + open (9 aluminum), continuous scroll at variable speeds
- Light Source: 1 LED (11,000 K) 32 W, (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 15°
- Illuminance: 5,000 lux @ 2 m
- Power Linking: 7 units @ 120 V; 12 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 83 W, 1.105 A @ 120 V, 60 Hz
77 W, 0.624 A @ 230 V, 50 Hz - Weight: 8.2 lb (3.8 kg)
- Size: 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
- Bracket Mounting Hole:: M12
- Optional Controllers: : IRC-6
- Approvals: : CE
