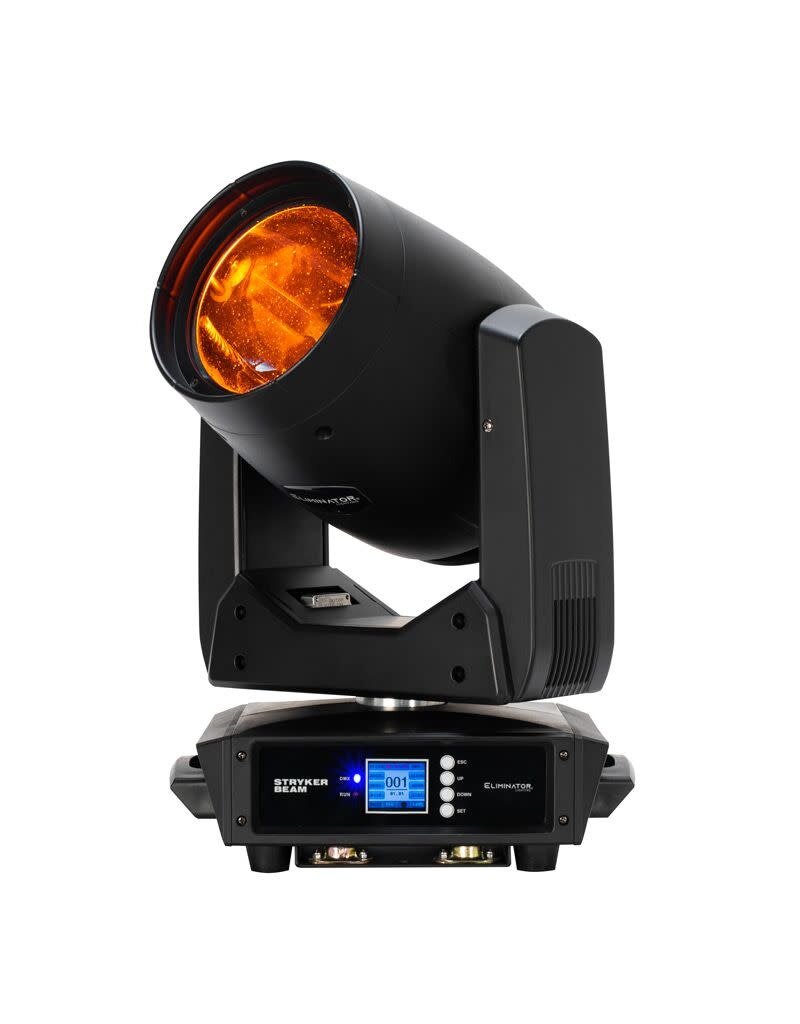

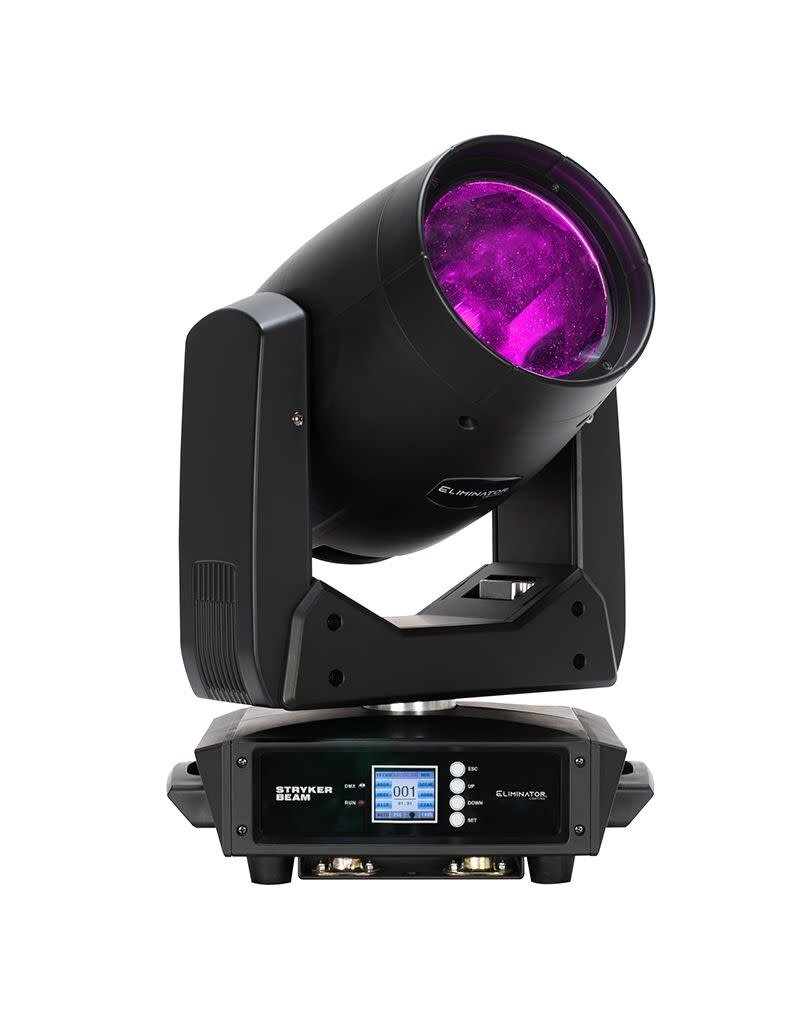

Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects.
The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect.
For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable. It features a large full color display screen, providing access to an intuitive menu-driven interface for DMX addressing and customization of the unit’s operating parameters. It features locking power input and output sockets, to allow multiple fixtures to daisy chain from a single outlet, together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system.
LIGHT SOURCE:
• 100W LED Engine
• 6-Degree Beam Angle
FEATURES:

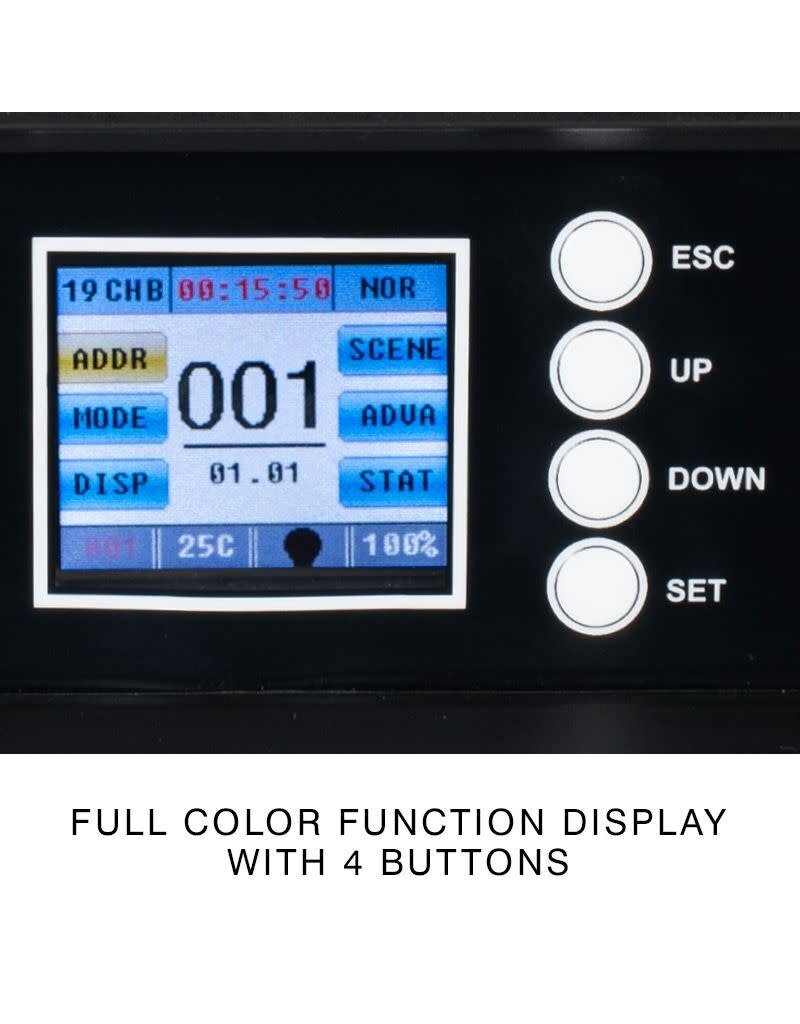

• Full color function display with 4 buttons
• Fast, precise, pan & tilt movements
• Primary / Secondary stand-alone mode
• Motorized Focus
• Frost Filter (50-Degree Wash Effect)
COLOR WHEEL:
• 13 colors + open
• Separate 6-Color flag for multi-color effects
GOBO WHEEL:
• Metal wheel with 11 GOBOS + open (2 are beam reducers)
• GOBO Shake Effect
PRISM WHEEL:
• 8-facet rotating circular prism
• 16-facet rotating circular prism
• Prism layering
CONTROL:
• 2 DMX channel modes: 6 & 19 channels
• Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes
• Electronic Dimmer: 0- 100 %
• Variable Strobe: 0-20HZ
• With Wired Digital Communication Network
CONNECTIONS:
• DMX Data In/Out: 3-pin & 5-pin connections
• Power In: Blue Locking indoor power connection
• Power Out: White Locking indoor power connection
PAN/TILT:
• Pan/Tilt: 540-degrees / 270-degrees
• 16-bit Fine Pan
• 16-bit Fine Tilt
ELECTRICAL:
• Multi-voltage operation: AC 100-24V, 50/60Hz
• Maximum Power Consumption: 150W
• Power daisy chain: 2 units @120V, 3 units @230V
DIMENSIONS & WEIGHT:
• Dimensions (LxWxH): 7.875” x 11.875” x 18.3125” / 200x302x465mm
• Weight: 29 lbs. / 12.8 kg.
Road Cases (Sold Separately):
• Two (2) Stryker Beam fit inside the ADJ DRC MH road case
• Four (4) Stryker Beam fit inside the ADJ QRC HM road case
