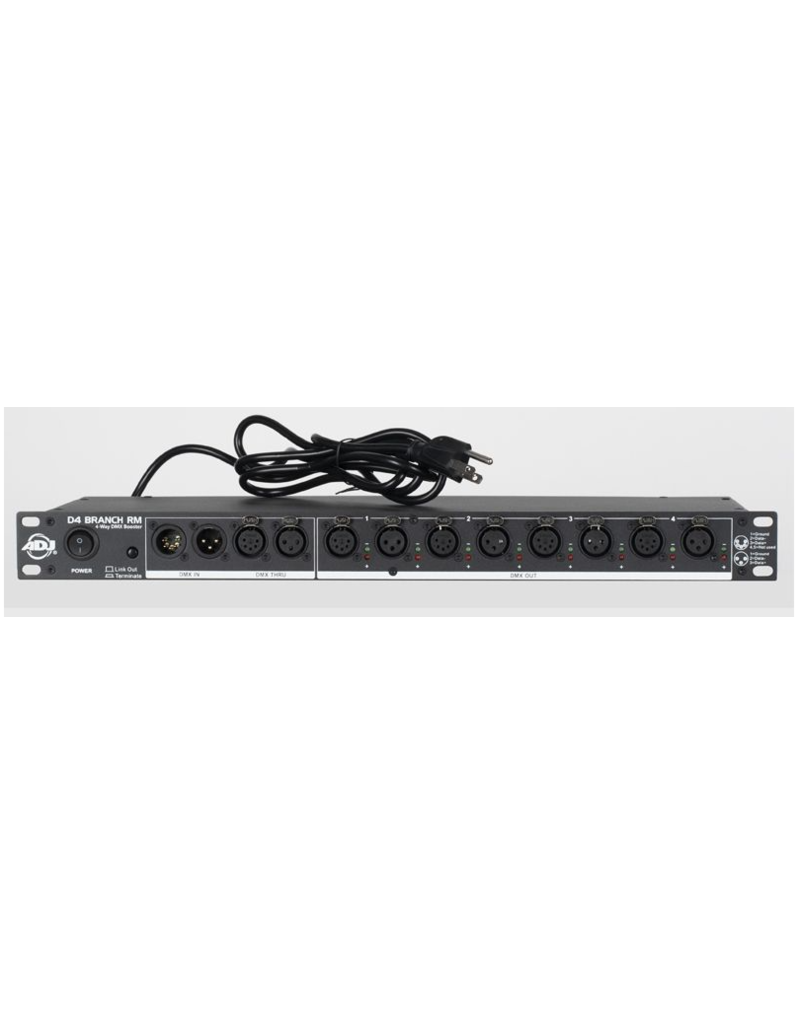

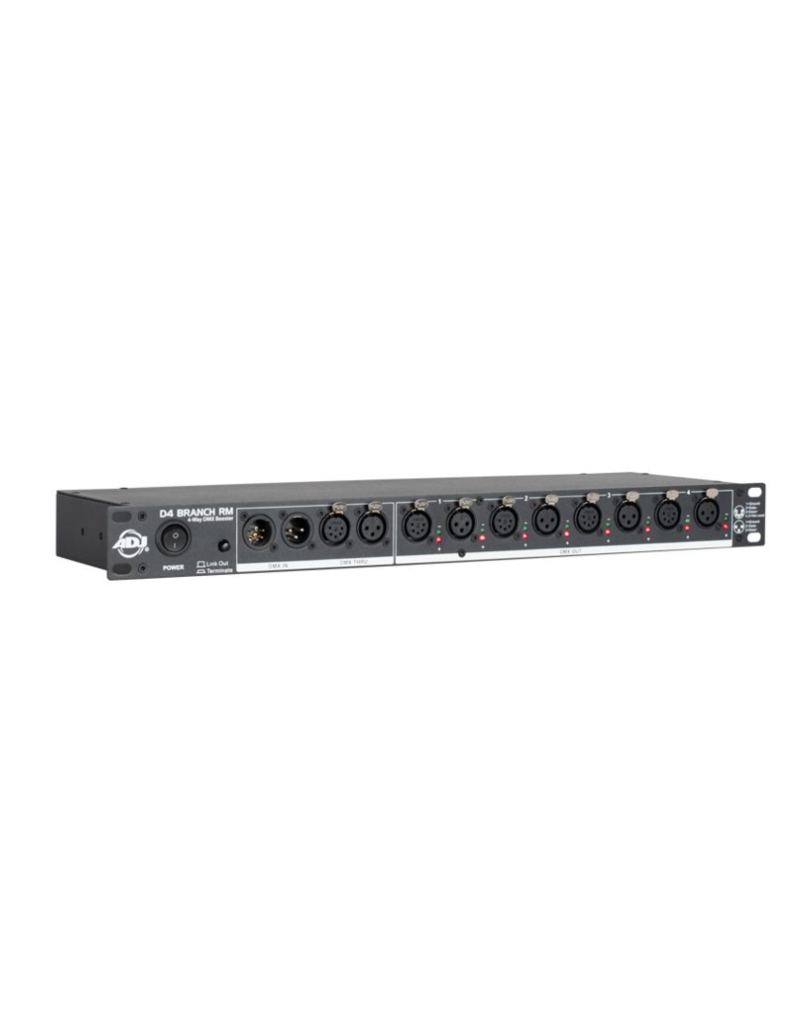

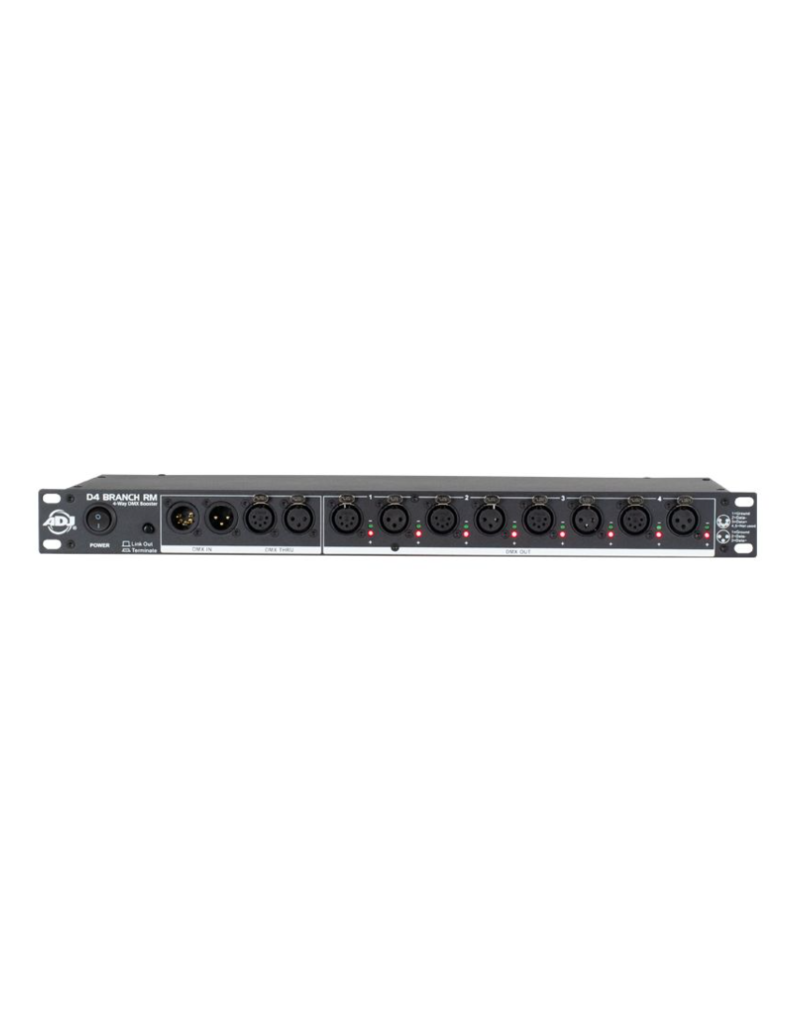

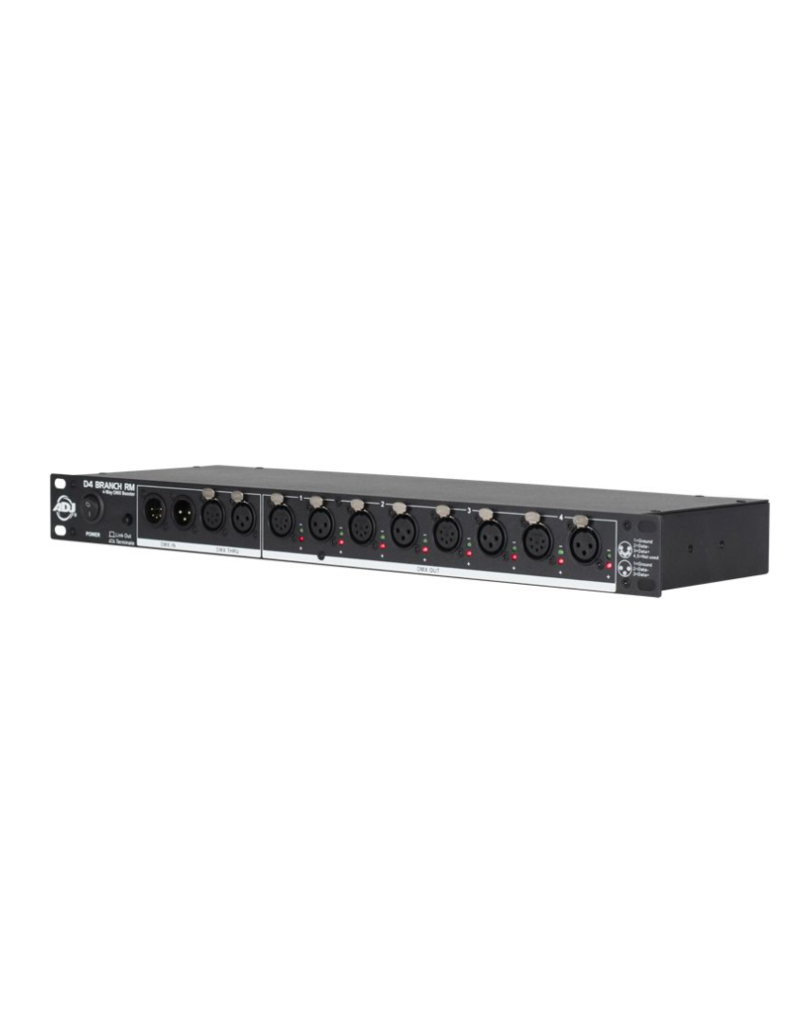

The ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks.
FEATURES:
• 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
• Built-in signal amplifier boosts the DMX signal for each port
• Link / Terminate Button for Easy Troubleshooting
• DMX Status LED Indicator
• (1) 3-pin + (1) 5-pin XLR Isolated Inputs
• (1) 3-pin + (1) 5-pin XLR Passive Loop Output
• (4) 3-pin + (4) 5-pin XLR Isolated Outputs
SIZE / WEIGHT:
• 19” (482mm) x 5.5” (139.8mm) x 1.7” (44mm)
• 5.3 lbs. (2.4kg)

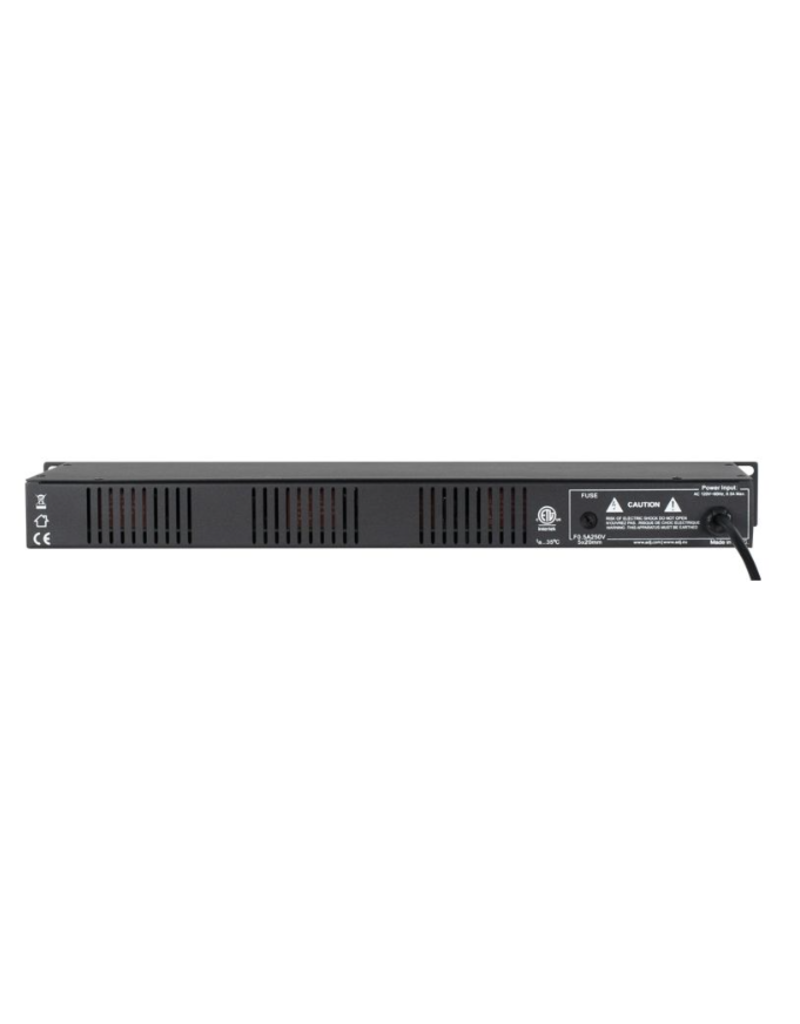

ELECTRICAL:
• AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only)
APPROVALS:
• cETLus pending
• CE approved
• FCC compliant
Specifications and documentation subject to change without notice.
